Farklı Aerosol Valf Tiplerini Anlamak İçin Eksiksiz Bir Kılavuz

“Choosing aerosol valve types can look simple—until a tiny seal, kök, or crimp throws the whole package off. OEM alıcıları için, the stakes are real.

Formülasyon, itici gaz, konteyner, daldırma tüpü, aktüatör, and spray output must play nice together. One mismatch can mean leaks, weak discharge, or production headaches.

Grand View Research tracks aerosol valves as a distinct global market, reflecting their commercial importance. This guide breaks down the specifications that matter.”

Key Points on Aerosol Valve Types

➔ Mounting Dimensions: Choose one-inch cups for standard cans, 13 mm crimps for compact formats or custom plates for specialty packages.

➔ Actuator Interfaces: Select continuous-spray heads for steady output, metered-dose sockets for precise dosing, or jet nozzles for focused streams.

➔ İtici Uyumluluk: Match gaskets and seals (LPG-proof, DME-resistant, fluorocarbon) to your formulation to prevent leaks and degradation.

➔ Dip Tube Specs: Use curved or weighted tubes to reach all product, or size custom lengths for unique container depths.

➔ Specialized Functions: Consider all-position, inverted-spray or child-resistant designs to meet end-use requirements.

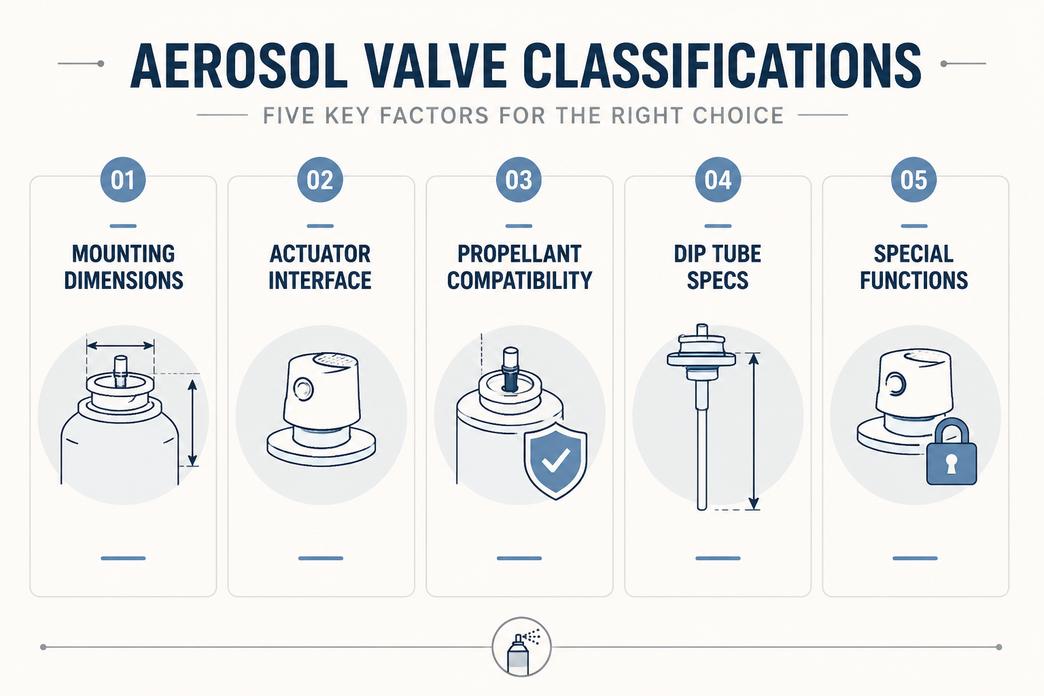

What Are The Main Valve Classifications?

Choosing among aerosol valve types starts with fit, akış, kimya, and spraying position. A good match keeps the can practical and leak-resistant. FANXUN valve options cover familiar aerosol formats as well as more specialized dispensing needs.

By Mounting Dimensions: one-inch mounting cup, thirteen millimeter crimp, custom mounting plate

• Standard packages
  • A one-inch mounting cup fits many aerosol kutuları; cup diameter Ve crimp profile guide sealing.
  • A thirteen millimeter crimp suits smaller containers.
• Special packages
  • A custom mounting plate adapts unusual mounting dimensions Ve ferrule design.

Actuator Interface Variants: continuous spray actuator, metered dose socket, targeted jet nozzle

Aerosol valve types also differ at the dispensing interface. Match the outlet to the job:

1. continuous spray actuator
   • Supports ongoing discharge and a broad sprey deseni.
2. metered dose socket
   • Controls each released amount through precise actuator fit.
3. targeted jet nozzle
   • Uses the stem profile to support a narrow, directed stream.

Propellant Compatibility Types: LPG compatible gasket, DME resistant housing, fluorocarbon seal

Compatibility matters—a valve that looks right may still react poorly with its propellant.

Dip Tube Specifications Breakdown: curved dip tube, weighted dip tube, custom length tube

• For edge pickup:
  • curved dip tube helps fluid extraction near the container wall.
• For moving cans:
  • weighted dip tube follows liquid as orientation changes.
• For exact fit:
  • custom length tube accounts for container depth, iç çap, tube rigidity, Ve polyethylene material.

Specialized Valve Functions Overview: 360-degree all position, inverted spray capability, child resistant mechanism

Special aerosol valve classifications tackle less ordinary jobs.

• Orientation control
  • 360-degree all position designs increase orientation freedom.
  • inverted spray capability supports upside-down use, sometimes using a vapor tap.
• Access control
  • A child resistant mechanism combines a safety lock ile functional valve to reduce unintended operation.

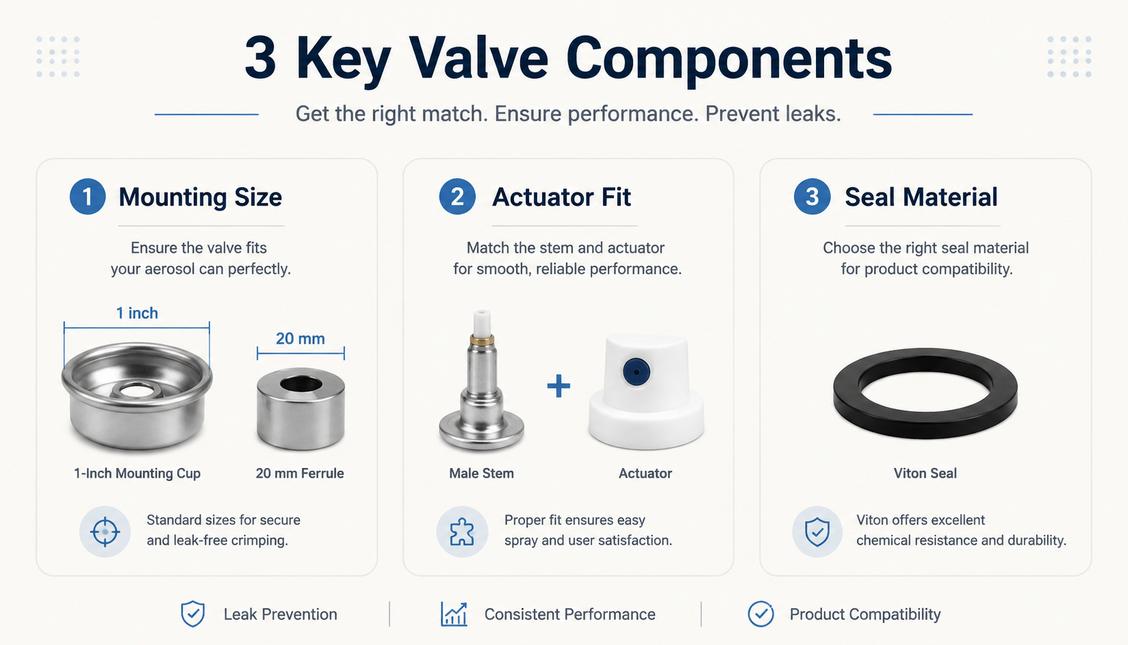

3 Key Valve Components You Must Know

Choosing among aerosol valve types gets easier once three practical details are clear: mounting size, actuator fit, and seal material. These parts affect pressure control, dağıtım, ve ürün uyumluluğu. İçinde day-to-day sourcing, matching each valve component to the container and formula can save a lot of hassle later.

Valve Mounting Dimensions: one-inch mounting cup vs. twenty millimeter ferrule

• For common aerosol valve types, start with the closure:
  • A one-inch montaj kabı matches a widely used container opening and familiar jant profili.
  • A 20 mm ferrule suits smaller closures.
• Then verify:
  • çap Ve dimensional standard for proper crimping.
  • seal compatibility, because a close mechanical fit still needs reliable pressure retention.

Actuator Interfaces Essentials: male stem profile fundamentals

A valve’s interface can look simple, but small details matter.

• . male stem extends into the actuator block:
  • Güvenli engagement ve retention rib help keep the actuator seated.
  • . delik influences akış hızı.
    • Actuator design also shapes the sprey deseni.

Across aerosol valve types, matching the stem and actuator is key to predictable dispensing. Kısacası, the parts need to click together properly.

Gasket and Seal Materials: viton sealing ring advantages

• Viton is a high-performance elastomer used in demanding aerosol valfi kurulumlar.
  • Its benefits include:
    • güçlü kimyasal direnç with fuels and many aggressive formulas;
    • useful temperature tolerance;
    • Düşük compression set, helping the seal retain its shape.
• As a durable fluorine-based polimer, Viton supports sızıntı önleme where standard rubber may struggle.

For aerosol valve types handling tougher contents, that added sealing stability can be a practical win.

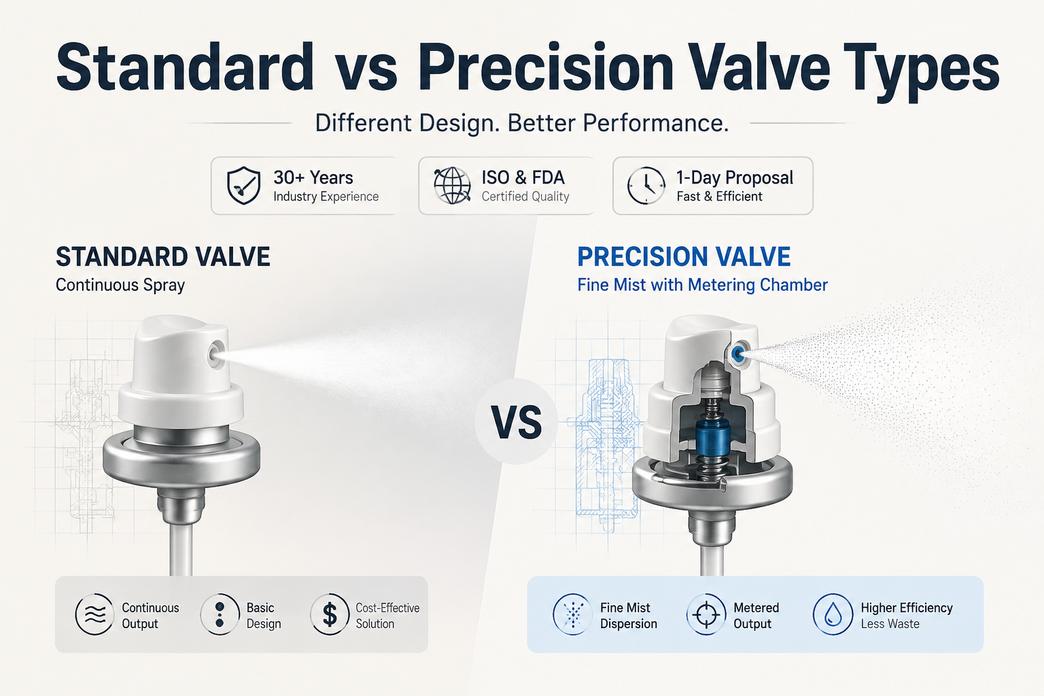

Standart Vs. Precision Valve Types

Choosing between aerosol valve types comes down to how a product needs to leave the can. Some jobs call for steady, no-fuss spraying, while others demand tighter control. FANXUN matches valve components to formulation, sprey deseni, dose needs, and end use, making aerosol valve selection much easier.

Standard Valve Type

Standard aerosol valve types suit products where reliable, continuous dispensing matters more than measuring each release. The familiar design keeps operation simple and fits many everyday applications.

• General dispensing
  • A montaj kabı secures the valve to the container.
  • . conta helps maintain a tight seal, iken bahar returns the valve after actuation.
• Product delivery
  • A daldırma tüpü feeds liquid into the konut.
  • Pressing the aktüatör opens the flow path for convenient spraying.
    • Bu genel amaçlı setup is a practical match for household, otomotiv, personal-care, ve endüstriyel ürünler.

For brands seeking proven aerosol valves without extra dosing complexity, the standard type is often a solid fit.

Precision Valve Type

Precision aerosol valve types take a more controlled approach. FANXUN can pair close-fit components with application-specific outlets when spray quality or dose consistency is key.

1. Controlled intake: A ölçüm odası can hold a set amount of formulation before release.
2. Refined discharge: . stem orifice ve bir specialized actuator shape output for a targeted stream or ince sis.
3. Tighter performance: High tolerance manufacturing supports repeatable operation where exact dosage önemli.

For demanding aerosol types, including certain medical or technical applications, pharmaceutical grade component requirements may also apply. The result is a valve design built around controlled delivery rather than simple continuous flow.

Need help matching the right valve to your formulation? Aşırı 30 years of packaging expertise, FANXUN provides customized aerosol valve solutions that meet rigorous ISO and FDA standards. Get a fast, 1-day solution proposal tailored to your specific spray pattern and pressure needs. Bugün Bize Ulaşın.

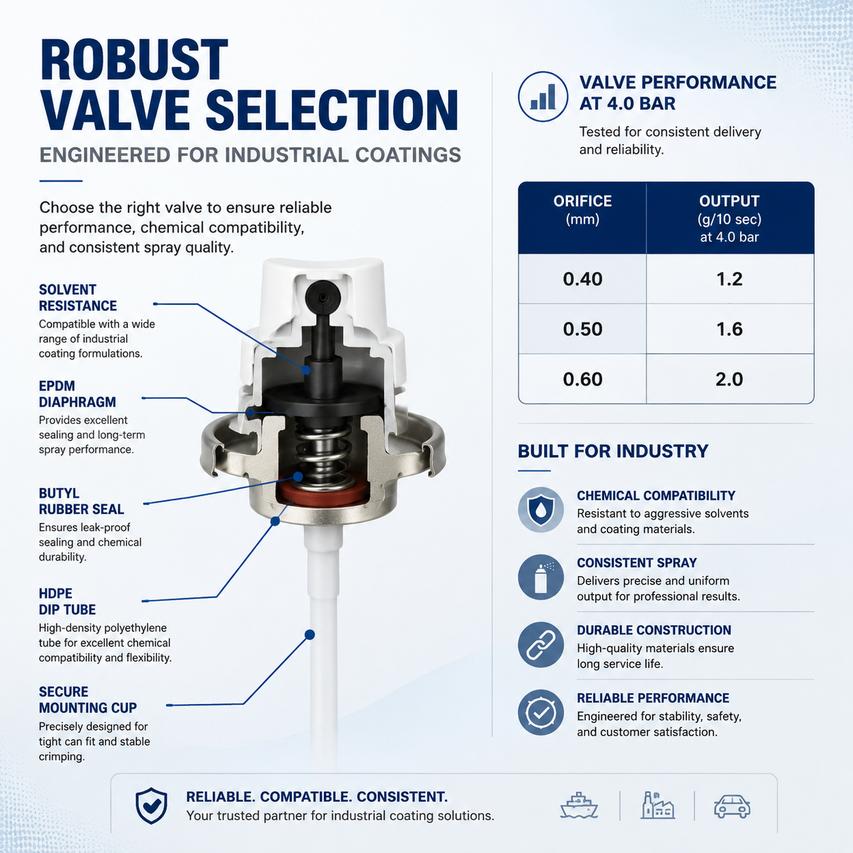

Endüstriyel Kaplamalar: Choosing Robust Valves

Industrial coatings can be rough on an aerosol package: strong solvents, changing pressure, and high flow all put valve parts to work. Comparing aerosol valve types means checking materials and output as one system, not picking a valve by name alone. The practical goal is simple: sabit sprey, tight sealing, and dependable pickup without nasty surprises.

Propellant Compatibility in Harsh Environments

Different aerosol valve types need compatibility checks before production.

• İtici gaz:
  • liquefied gas propellant needs suitable basınç toleransı.
  • sıkıştırılmış gaz can create different pressure behavior.
• Malzeme:
  • Onaylamak solvent resistance, kimyasal direnç, Ve elastomer stability.
  • Pair material choices with korozyon önleme ihtiyaçlar.

That basic homework saves headaches later.

High Output Orifice for Even Coating Coverage

High-output aerosol valve types depend on valf deliği boyutu, akış hızı, Ve aktüatör tasarımı working together. Bigger is not automatically better; viscosity and pressure affect atomizasyon, sprey deseni, paint deposition, ve son surface coverage.

These are comparison test settings, not universal specifications.

epdm diaphragm and butyl rubber liner Gaskets

For aerosol valve types handling demanding coatings:

• Sealing system:
  • EPDM diaphragm supports resistance to selected chemicals and weather exposure.
  • butyl rubber liner offers low gas permeability.
• Doğrulama:
  • Kontrol etmek chemical permeation against the actual formula.
  • Doğrulamak mühür bütünlüğü Ve sızıntı önleme for each valve gasket Ve elastomeric material.

Small material changes can make a big difference.

Custom mounting plate with high density polyethylene tube integration

Special containers often push aerosol valve types beyond standard dimensions.

• Yerleştirmek:
  • Eşleştir montaj kabı ile container compatibility gereksinimler.
  • Confirm a secure fitting and adequate structural stability.
• Pickup:
  • Size the HDPE dip tube for container depth.
  • Doğrula tubing integration with coating viscosity.
• Final build:
  • Test the custom assembly under intended pressure and storage conditions.

Leaky Valves? 3 Solutions For Zero Drip

Drips can turn a good aerosol package into a messy customer experience. Across different aerosol valve types, leakage often comes down to seal compatibility, discharge control, veya cap protection. Matching the right valve parts to the formula and use case helps maintain cleaner dispensing. FANXUN can support aerosol valve types designed around these practical needs.

Upgrade to a fluorocarbon seal

Bir standart conta may lose sızdırmazlık bütünlüğü when exposed to aggressive formulas. For demanding aerosol valve types, fluorocarbon materials can offer a practical fix.

• Start with formula compatibility.
  • Kontrol et elastomer against the product.
    • Daha yüksek kimyasal direnç can limit swelling and softening.
    • Daha düşük permeation can help keep the package sealed.
  • Consider operating conditions.
    • Viton-type fluorocarbon materials can suit certain challenging formulas.
    • Eklendi dayanıklılık may reduce seal wear over time.

Compatibility testing still matters; no seal works with every formulation.

Switch to a controlled discharge port

A controlled port tackles dripping at the point where product leaves the valve.

1. Kibrit orifice size to the required akış hızı. Too much flow can make cutoff sloppy.
2. Tune the aktüatör for the desired sprey deseni ve istikrarlı pressure drop.
3. Kontrol etmek dağıtım doğruluğu after release. İyi ölçüm helps aerosol valve types stop cleanly instead of leaving product hanging at the outlet.

That small design change can make everyday use feel much tidier.

Incorporate tamper evident cap integration

A leaky valve is not always caused by the internal valve design. Accidental pressing during shipping or handling can also create a mess.

• Safety seal: shows signs of opening and supports tüketici güvenliği.
• Breakaway band: makes görsel muayene quick and straightforward.
• Overcap: shields the actuator while improving ambalaj güvenliği.
• Protection ring: helps resist unintended activation.

For aerosol valve types headed through busy supply chains, tamper-evident protection adds a useful physical barrier around the dispensing system.

Ready to Build a Better Aerosol Package?

Don’t let a mismatched valve ruin your product’s performance. Whether you need standard continuous spray actuators or highly specialized precision valves, FANXUN’s expert team is ready to help you match the perfect aerosol kutusu aksesuarları to your custom tin or aluminum cans.

• Hızlı Geri Dönüş: Inquiries answered within 12 saat.
• Flexible Orders: MOQ'lar şu tarihten itibaren başlıyor: 3,000 pcs with free samples available.
• Guaranteed Quality: 100% online sealing tests and ISO 9001:2008 certified manufacturing.

FANXUN'a Bugün Ulaşın to get your customized 1-day solution proposal!
