Aerosol Valf Diyagramını Anlamak: Eksiksiz Bir Görsel Kılavuz

[email protected]
09/01/2026

Bir aerosol valfi diagram can look harmless, yine de küçük bir spesifikasyon, bir milyon ünitelik çalışmayı raydan çıkarabilir. OEM alıcıları için, o küçük çizim akışın olduğu yer, yerleştirmek, sızdırmazlık, ve üretimde baş ağrıları başlıyor veya duruyor.

FANXUN mühendisleri valf çizimlerini üretim referansı olarak ele alıyor, sapları birbirine bağlamak, contalar, yaylar, montaj bardakları, daldırma tüpleri, ve üretim gereksinimlerine toleranslar.

Read it right, and sourcing gets less dicey. Five details show what matters before production.

Hızlı Notlar: The Art of the Aerosol Valve Diagram

➔ Dip Tube Role: Ensures consistent dosage volume by precise length and positioning.

➔ Spring Strength: Stainless steel springs boost pressure resistance and reliable stem return.

➔ Conta Contası: Buna rubber dimensions and compression dictate leakage rate performance.

➔ Stem Precision: Orifice and stem tolerances control accurate flow rates batch after batch.

➔ Cup Choice: Aluminum alloy mounting cups offer low weight and corrosion resistance for secure sealing.

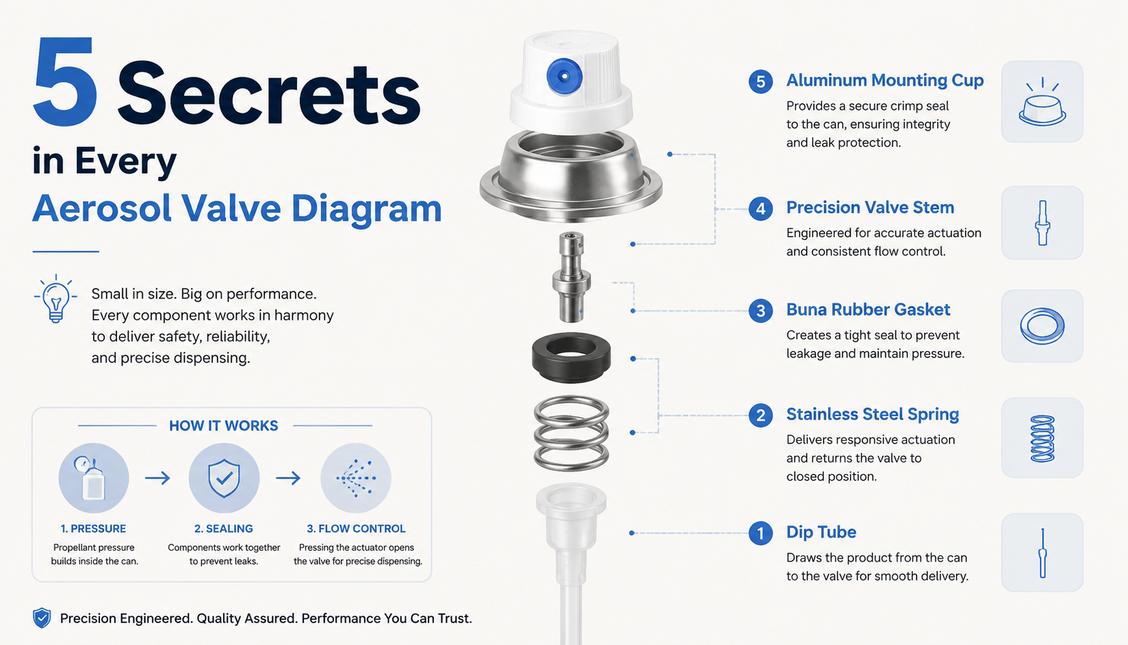

5 Secrets In Every Aerosol Valve Diagram

An aerosol valve diagram may look simple, but tiny parts shape everyday spray performance. From cosmetics to household aerosol kutuları, each valve drawing reveals how pressure, sızdırmazlık, and product pickup work together. Reading an aerosol valve diagram closely also helps buyers spot practical design choices before production gets rolling, saving a fair bit of guesswork.

Secret of the Dip Tube’s Role in Consistent Dosage Volume

Daldırma tüpü setup controls product pickup.
- Düzgün immersion length keeps the tube within the sıvı itici gaz mixture.
- Uygun bir iç çap supports smoother akışkanlar dinamiği.
  - That balance improves flow consistency ve tekrarlanabilir dosage volume.

An aerosol valve diagram makes those relationships easier to check at a glance.

How Stainless Steel Springs Enhance Pressure Resistance

Paslanmaz çelik gives the bahar useful çekme mukavemeti.
- İyi esneklik limits permanent deformasyon.
After çalıştırma, spring force restores vana kapatma.
- Reliable return improves basınç direnci during repeated use.

Kısacası, the valve diagram shows where that small spring does some heavy lifting.

The Little-Known Impact of Buna Rubber Gaskets on Leakage Rate

A buna rubber conta korumaya yardımcı olur mühür bütünlüğü, but fit matters. Elastomer sıkıştırma, kimyasal uyumluluk, and material geçirgenlik can all affect the tested sızıntı oranı.

For FANXUN valve evaluation, the aerosol valve diagram can help match gasket placement with sealing requirements before tooling decisions are locked in.

Why Stem Dimension Precision Matters in Flow Rate Accuracy

Valf sapı
- Dimension precision
  - stabilize eder delik boyutu
  - destekler akış hızı kesinlik
Sırasında çalıştırma
- product enters the ölçüm odası
- controlled passages keep discharge predictable.

Small dimensional changes can make a noticeable difference, so the aerosol diagram deserves a close read.

Uç: Aluminum Alloy Mounting Cups for Corrosion Resistance

Bir alüminyum alaşımı montaj kabı combines low weight with practical korozyon direnci.

Kontrol etmek sıkma geometry and the can seal.
Review any koruyucu kaplama.
Match both to expected çevresel dayanıklılık.

That simple valve drawing check can prevent sealing headaches later.

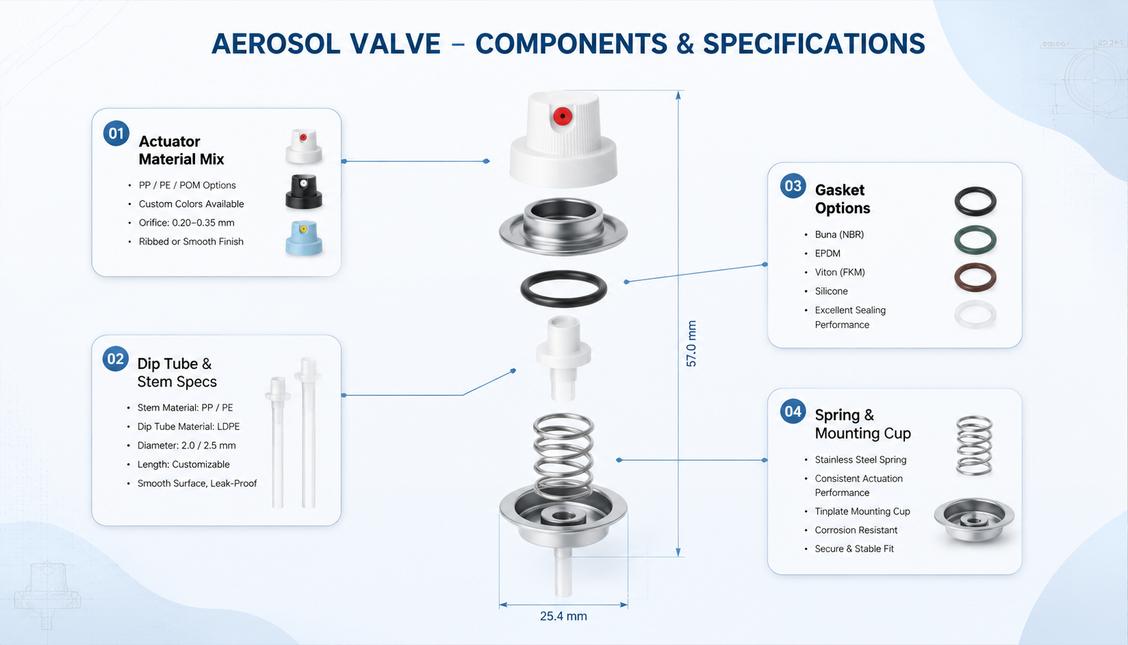

4 Key Components Of An Aerosol Valve Diagram

A clear aerosol valve diagram turns small parts into useful engineering information. FANXUN uses valve drawings to connect materials, boyutlar, fatura, and spring placement with real dispensing behavior. That makes an aerosol diagram easier to read when checking flow, yerleştirmek, ve dayanıklılık.

Actuator Assembly Material Mix

An aerosol valve diagram shows how actuator material and shape meet the stem and outlet.

Material choices
- polipropilen offers a practical balance of stiffness and cost.
- polietilen can provide softer behavior, sırasında thermoplastic elastomer adds grip or flexibility.
Design choices
- acetal may suit parts needing low friction.
- A polymer blend, colorant additive, or adjusted reçine formülasyonu can change feel, dış görünüş, ve performans.

That’s where the small details really count: geometry around the orifice affects spray pattern and flow.

Dip Tube and Stem Dimension Specs

An aerosol valve diagram also records dimensions needed for reliable product pickup. Engineers commonly check iç çap, outer diameter, and total uzunluk against the container.

Confirm tube duvar kalınlığı Ve tolerans.
Kontrol etmek straightness so the tube reaches the intended area.
Match stem passages and delik boyutu to dosage and flow targets.

FANXUN can use these specifications to align valve components with dispensing needs.

Gasket Variations Between Neoprene and Buna Rubber

neopren and Buna are elastomer seçenekler, but formulation exposure can affect each differently.

Sealing factors
- Karşılaştırmak kimyasal direnç Ve temperature range with the product.
- Specify suitable durometer hardness for controlled deformation.
Uzun vadeli performans
- Gözden geçirmek sıkıştırma seti after sustained pressure.
- Doğrulamak mühür bütünlüğü through leakage testing.
- Kontrol etmek polymer composition against propellants and active ingredients.

A valve schematic makes each gasket location easy to spot.

Spring Interface with Mounting Cup

The closure system depends on more than spring force.

Spring interface
- paslanmaz çelik destekler korozyon direnci.
- coil tension controls return action and helps manage axial load.
Cup connection
- . crimp profile secures the mounting cup.
- . ferrule interface contributes to stable retention force.

FANXUN can map these relationships in an aerosol valve diagram, helping engineers check pressure resistance and repeatable actuation during fatigue tests.

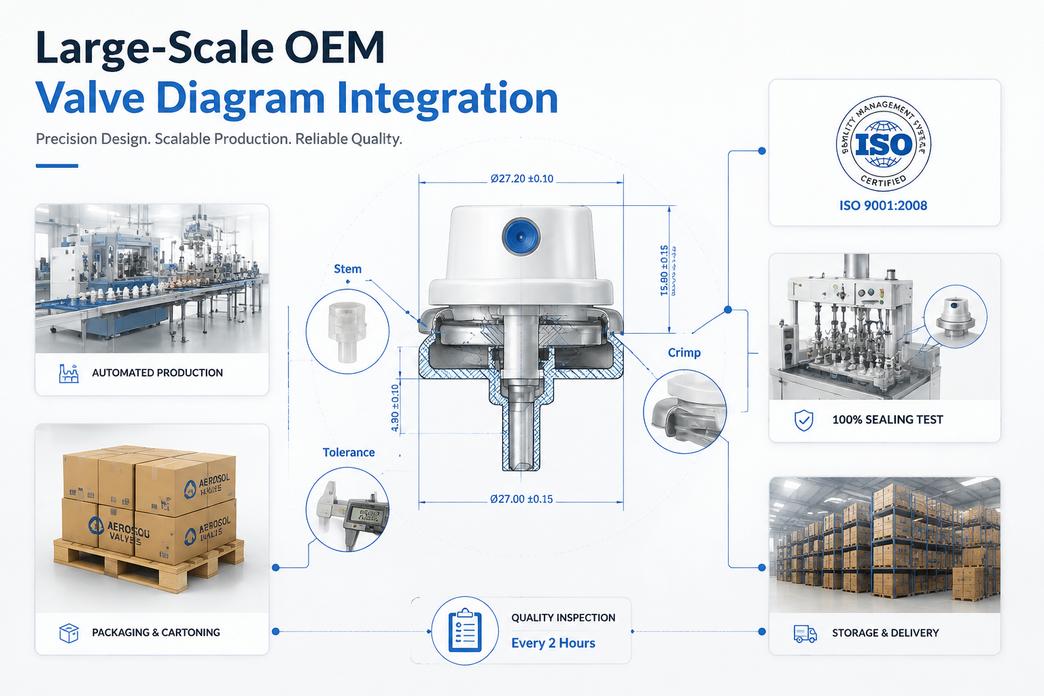

Large-Scale OEM: Valve Diagram Integration

For large OEM orders, a clear aerosol valve diagram keeps suppliers, engineers, and buyers on the same page from tooling through delivery. Stem size, crimp diameter, malzeme, and tolerance notes remove much of the guesswork. FANXUN uses detailed valve drawings to connect production planning, paketleme, test, and quality checks without making the process needlessly complicated.

Streamlining Customized Tooling for High-Volume Valve Production

An aerosol valve diagram gives özel takım teams exact dimensions before metal is cut.

Production setup
- . technical diagram defines stem, fok, and crimp tolerances.
- Her biri aerosol valfi can then fit the planned component assembly.
Volume control
- Stable tooling supports the üretim süreci across large batches.
- Üretim hattı checks and machinery optimization keep output moving without cutting corners.

That shared valve diagram makes repeat orders easier to reproduce.

Best Practices in Inventory Management and Freight Forwarding

Clear aerosol valve diagram references also help the tedarik zinciri match physical parts with purchase records. İçinde depolama, staff can identify valve versions quickly, yapma stok kontrolü Ve inventory tracking less of a headache.

Label cartons with matching drawing or valve codes.
Use protective film and pallets for safer lojistik koordinasyonu.
Load each shipping container to limit movement and support the wider dağıtım ağı.

Good packaging turns accurate specifications into safer deliveries.

Ensuring Quality Assurance Through ISO Certification and Factory Audits

Aerosol valve diagram dimensions need verification, not just careful drafting.

Manufacturing checks
- Kalite kontrol compares finished parts against specified tolerances.
- Bir ISO 9001:2008 system supports documented kusur önleme.
Doğrulama
- A factory audit reviews process controls and records.
- Compliance inspection addresses each applicable düzenleyici gereklilik.
- 100% çevrimiçi sızdırmazlık testleri and lab checks every 2 saat check pressure performance over repeated use.
