An Aerosol can valve diagram exposes the tiny parts that can make or break a production run. One wrong gasket, crimp, or orifice can turn smooth dispensing into leaks, clogs, and costly headaches.

Inside, actuator, mounting cup, dip tube, stem gasket, and spring work as a team. Knowing their materials, dimensions, pressure limits, and tests helps OEM buyers specify smarter.

Reading Notes: Aerosol Can Valve Diagram Essentials

➔ Core Components: Identify actuator button, mounting cup, dip tube, stem gasket and return spring for reliable spray performance.

➔ Material Match: Specify acetal polymer, tinplate steel, Buna-N rubber and stainless steel based on corrosion resistance and formulation compatibility.

➔ Dimensional Control: Verify orifice diameter, stem dimensions and crimp diameter via CAD drawings and dimensional inspection to prevent leaks or clogs.

➔ Pressure & Seal Tests: Conduct 100% online leakage testing and burst pressure tests to confirm operating pressure limits and gasket integrity during full-scale production.

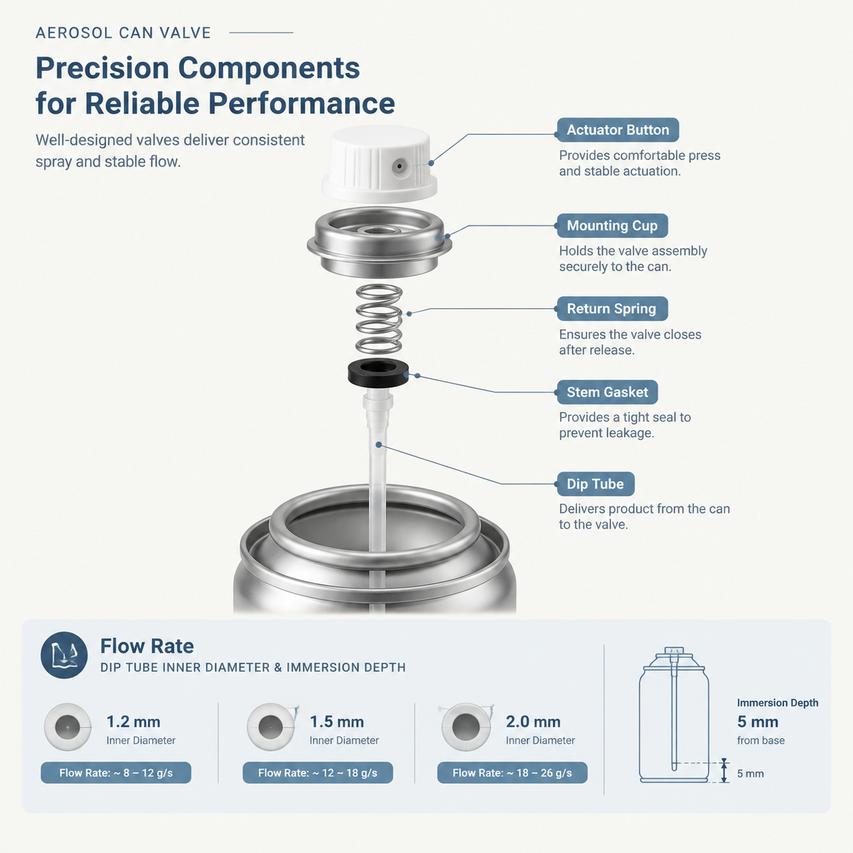

Inside The Can: 5 Core Valve Components

An Aerosol can valve diagram makes small parts easier to understand, from product pickup to spray release. In FANXUN valve designs, each material and dimension has a practical job. Here’s the deal: tiny changes inside an aerosol can can noticeably affect sealing and discharge.

Actuator Button: Injection Molding of Acetal Polymer

Injection molding turns polymer resin into a rigid actuator button.
- Acetal polymer, a durable thermoplastic, keeps the finger pad stable.
- A precisely formed spray orifice controls the outgoing spray. That detail matters on an Aerosol can valve diagram.

Mounting Cup Crafted from Tinplate Steel

Stamped tinplate steel gives the mounting cup its strength while a protective coating supports corrosion resistance.

Metal stamping forms the cup.
The crimp seal locks it onto the aerosol container.
FANXUN checks key dimensions during valve inspection.

Dip Tube Dimensions and Flow Rate Control

An Aerosol can valve diagram also traces the dip tube down toward the product.

Parameter	Typical example	Flow effect
inner diameter	1.2 mm	Lower
inner diameter	1.5 mm	Medium
inner diameter	2.0 mm	Higher
immersion depth	5 mm from base	Better pickup

Polyethylene tubing dimensions interact with viscosity control and liquid propellant behavior, affecting flow rate.

Buna-N Rubber Stem Gasket Functionality

Buna-N rubber acts as an elastomer stem gasket around the stem. Its key jobs are seal integrity, leak prevention, and dependable valve closure; however, chemical compatibility must match the actual formula.

Stainless Steel Return Spring Mechanics

Valve actuation compresses the return spring.
- Stored elastic potential drives mechanical recoil.
- Stainless steel supplies useful tensile strength and corrosion resistance.
On an Aerosol can valve diagram, this closing action explains how the valve resets after each press.

Need Precision Aerosol Valves?FANXUN offers customized aerosol can valves and complete can assemblies. Get a 1-day solution proposal and fast samples in just 10 days. Contact us today.

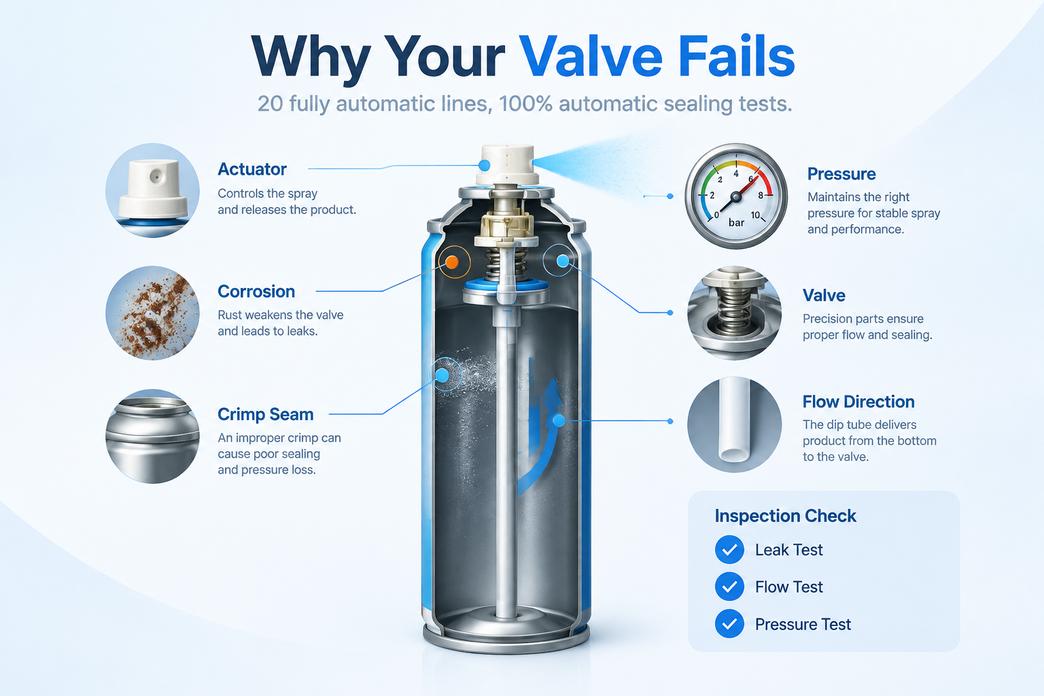

Why Your Valve Fails: Inside The Can

An Aerosol can valve diagram makes hidden faults easier to spot before a can reaches users. From pressure and flow to corrosion and joining, small details inside the aerosol can matter. FANXUN uses valve checks to catch these trouble spots early.

Inadequate Operating Pressure Leading to Leaks

Aerosol can valve diagram checks should start with pressure, since a small error can turn into a leak pretty fast.

Pressure control
- propellant gas creates internal pressure inside the can.
- Crossing the designed pressure threshold can reduce seal integrity.
Leak diagnosis
- Inspect the valve stem for a possible leakage path.
- Confirm any pressure loss through 100% online leakage and burst pressure testing.

Orifice Diameter Mismatch Causing Flow Irregularities

On an Aerosol can valve diagram, the actuator orifice may look tiny, but its diameter has a big job.

Check diameter against tolerance.
Compare the resulting flow rate and pressure drop.
For a metering valve, verify:
- tolerance deviation at the opening;
- expected spray pattern;
- suitable particle size.

That keeps spray performance on track.

Material Corrosion: After Failed Leakage Testing

A failed leak test deserves more than another quick test.

Material condition
- Look for rust formation or other metal degradation caused by a chemical reaction.
- Trace possible electrolyte exposure.
Compatibility
- Check the gasket material against the formula.
- Inspect the barrier coating on metal surfaces.

A valve diagram or Aerosol can valve diagram can then guide the fault investigation.

Seaming and Crimp Defects at the Crimp Diameter

Crimp and seam faults can hide where components meet. That’s the tricky bit.

Inspect the crimp joint and mounting cup dimensions.
Check mechanical seaming pressure and signs of metal deformation.
Search for each micro-fissure or assembly defect that could reduce structural integrity.

Dimensional inspection then links the aerosol valve layout to actual production results.

Ensure 100% Leak-Proof Performance
At FANXUN, we integrate 100% automatic sealing tests directly on our 20 fully automatic production lines to guarantee every can meets strict ISO and FDA standards. Learn more about our custom manufacturing.

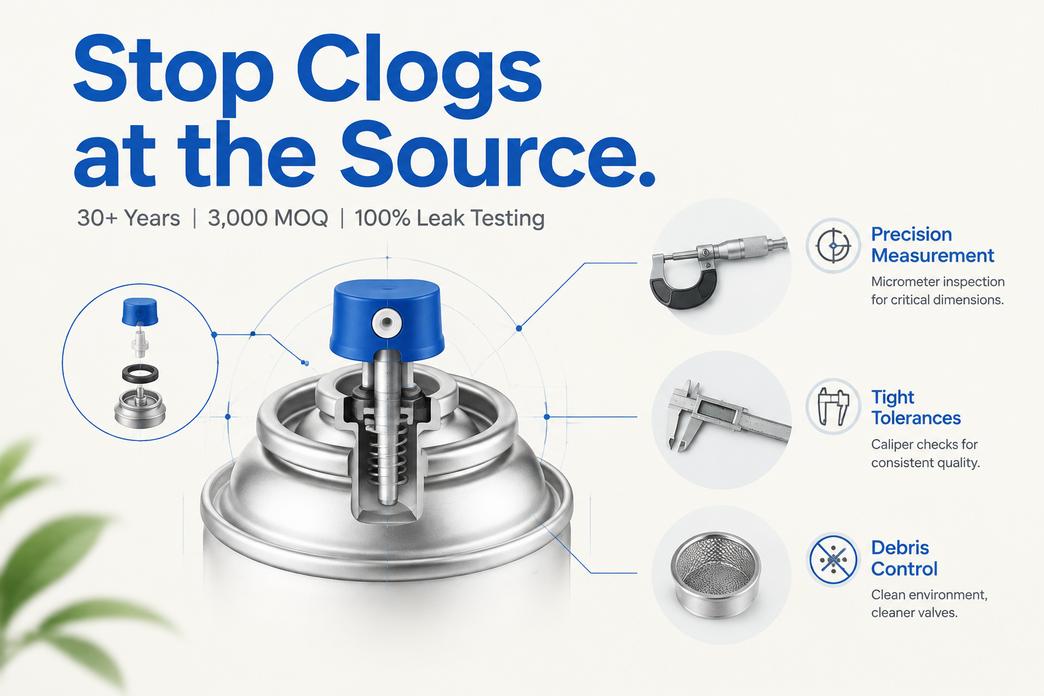

Stem Clog Solutions Via Valve Diagram

An Aerosol can valve diagram gives technicians a practical way to trace flow from the can through the stem and orifice, so clog risks are easier to spot. FANXUN uses the Aerosol can valve diagram alongside drawings and measured parts to connect everyday valve troubleshooting with tighter production control, cleaner movement, and more dependable aerosol discharge.

Precision Machining of Stem Dimension for Debris-Free Flow

The Aerosol can valve diagram helps match each stem dimension to the intended flow path.

Machining control
- Hold tolerance around critical surfaces.
- Use precision machining to keep the valve stem centered.
  - A correctly sized orifice limits tight pockets where particles can settle.
  - Better alignment supports practical debris control without choking product flow.

For FANXUN production checks, the drawing and actual part should agree; even a small mismatch can become a real headache once residue enters the valve.

Compatibility Testing of Lubricants to Prevent Buildup

A clean Aerosol can valve diagram cannot prevent a poor material match. Testing the lubricant with each valve component, Buna-N rubber, and aerosol formulation checks for unwanted chemical interaction before filling.

Expose materials under expected storage conditions.
Check swelling, tackiness, residue, and stem movement.
Compare results against untreated controls.

This compatibility testing helps catch product buildup risks early.

Regular Dimensional Inspection to Catch Early Blockages

Routine dimensional inspection every ~2 hours turns the valve drawing into a useful shop-floor reference.

Inspection routine
- Record stem and orifice measurement.
- Compare readings with approved limits.
  - Use the Aerosol can valve diagram to confirm valve anatomy.
  - Apply wear analysis when dimensions drift.
Quality response
- Follow the inspection protocol.
- Flag residue, deformation, or a developing blockage before flow drops, keeping quality control practical and consistent.
