One tiny push, and whoosh! An aerosol can spray bursts into action. But what’s really happening inside that metal shell? Hidden pressure, expanding propellants, and precision valves work together to turn liquid into mist.

For manufacturers, this isn’t just clever science. Can strength, valve design, and material compatibility make or break spray performance. So, how does it all work? For a sourcing project, explore FANXUN’s tin aerosol cans and share your formula type, capacity, and pressure requirements.

Key Notes for Aerosol Can Spray Basics

Pressure Flow: Internal pressure forces formulation through the dip tube and valve, creating the spray cascade.
Propellant Action: LPG, dimethyl ether, hydrofluoroolefin, or nitrogen expands on release, shaping spray speed and droplet size.
Valve Control: Actuator pressure opens the valve, directing stored energy into a controlled mist.
Atomization: Nozzle design, viscosity, and surface tension break liquid into fine droplets for even coverage.
Packaging & Testing: Strong can materials, compatible linings, and safety tests support reliable performance and safe transport.

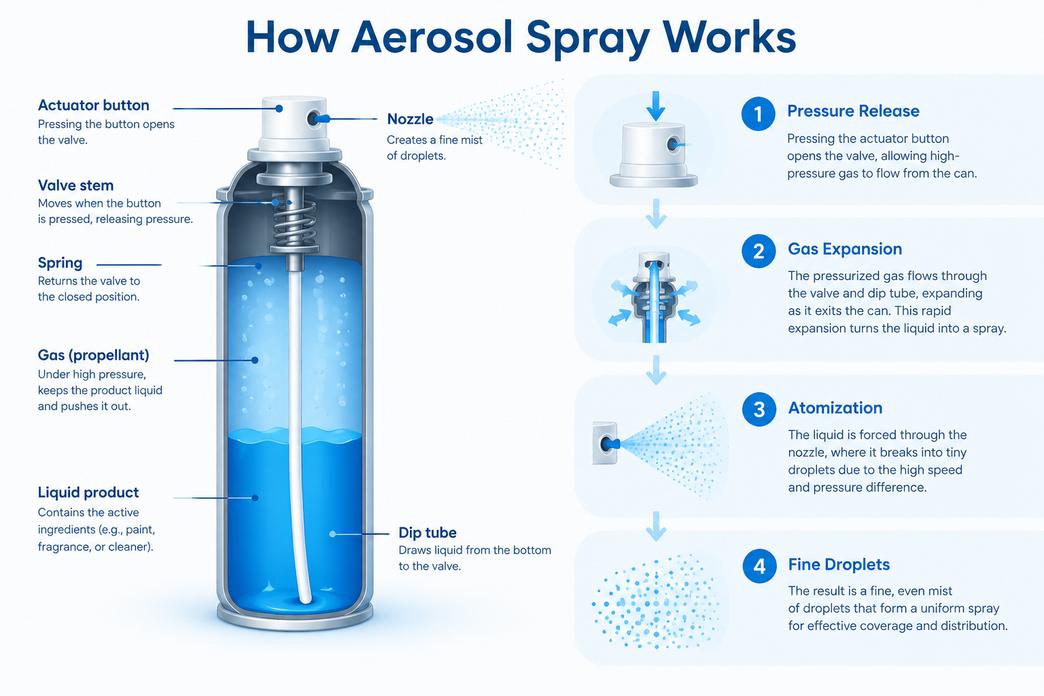

How Aerosol Can Spray Really Works

Ever wonder why a quick press on that nozzle sends out a fine mist? An aerosol can spray looks simple, but a few tightly linked steps happen in a split second. Here is what’s going on inside, from pressure to the final puff of droplets. FANXUN’s guide to how aerosol cans work provides a related packaging overview.

The Pressure Cascade Inside an Aerosol Can Spray

Before you press anything
- In a liquefied-propellant system, liquid propellant coexists with its vapor in an equilibrium state; a compressed-gas system works differently.
- In that liquefied system, vapor pressure acts on the container walls.
The moment you spray
- As liquefied propellant evaporates during discharge, it absorbs thermal energy. The can can feel cold, especially during sustained spraying.
- Higher pressure inside shoves the formula up the dip tube.

Propellant Expansion Drives the Spray Pattern

Liquefied petroleum gas and dimethyl ether can flash-evaporate as pressure falls during discharge, while compressed nitrogen expands to push the product out. That gas expansion hands the stream plenty of kinetic energy.

LPG: liquefied propellant; expansion contributes to droplet formation
DME: spray wetness depends on the complete formulation and nozzle
Nitrogen: compressed gas; pressure generally falls as the headspace expands

The spray pattern depends on nozzle geometry, fluid properties, and operating pressure; repeatability must be checked with the intended formulation.

Valve Opening Turns Stored Pressure into Motion

For a component overview, see FANXUN’s aerosol can valve structure guide.

Your thumb hits the actuator button, which drives the valve stem down.
In a typical spring-loaded valve, the spring mechanism compresses and stem movement exposes a release channel at the gasket seal.
Pressurized contents rush out. Flow rate depends on pressure difference, flow passages, and formulation; pressing harder does not necessarily increase output once the valve is fully open.
Let go, and the spring snaps everything shut.

Why Atomization Makes Aerosol Can Spray Possible

Liquid loves to stay in one blob, thanks to surface tension. Then pressure drops, narrow passages squeeze the stream, and shear stress tears it into microscopic droplets. That liquid breakup is the whole trick. Thin formulas split easily, while thick ones need extra push. Tiny drops stay in suspension longer, and a quick evaporation rate helps dispersal across a surface or a room. FANXUN supplies aerosol cans and related valves and actuators, and can assist in component matching. The filler must validate the spray with the intended formulation; FANXUN does not provide filling services. Review the available aerosol valves and actuators with FANXUN.

Aerosol Can Spray: Pressure, Propellant, Valve

Ever wonder why your aerosol can spray puts out a fine mist, then sputters near the end? It comes down to three things: what pushes the liquid, how the valve opens, and which button you press. Let’s break it down simply.

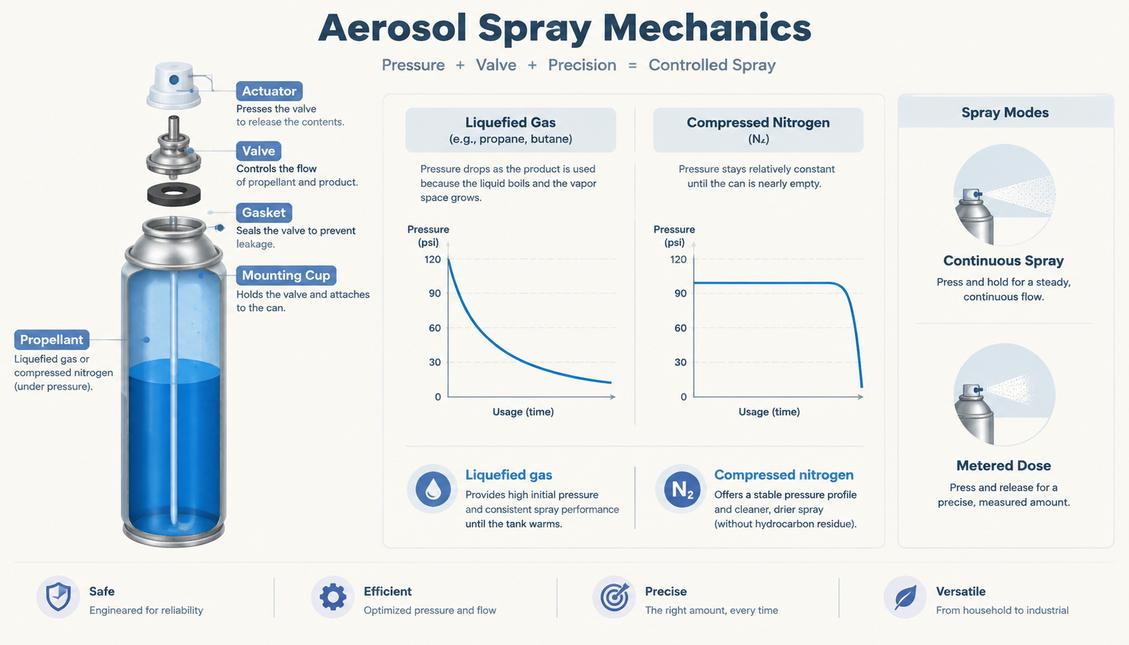

Liquefied Petroleum Gas vs. Compressed Nitrogen in Aerosol Spray

Liquefied Petroleum Gas works as a propellant that sits in two forms inside the can.
- The liquid phase boils off to refill the gas phase.
- Vapor pressure can remain approximately stable at a fixed temperature while liquid propellant remains; cooling and mixture changes can still affect output.
- A big expansion ratio helps break the product into fine droplets.
Compressed Nitrogen remains gaseous under normal aerosol operating conditions; pressure generally falls as the gas headspace expands during discharge.

Dimethyl Ether and Hydrofluoroolefin Pressure Behavior

Dimethyl Ether can act as a solvent, but does not guarantee mixture stability and is extremely flammable. Specific HFOs such as HFO-1234ze(E) have a lower global warming potential than many HFCs; this does not establish overall environmental safety or suitability for every aerosol. For liquefied propellants, saturated vapor pressure rises with temperature. A spray can left in a hot car is a bad idea: heat and physical damage in vehicle cabins can cause rupture. Always check solubility and compatibility before mixing. FANXUN’s guide to propellants in aerosol cans provides further packaging context.

Continuous Spray Valve and Metered Dose Valve Basics

Continuous Spray Valve
- Keeps spraying while the actuator is held down.
- Its dispensing rate depends on the valve, pressure, and formulation; output continues while held open.
Metered Dose Valve
- A metering chamber and valve mechanism release a nominally fixed shot per actuation within specified operating conditions.
- Great for dosage control and repeat use.

Male Aerosol Valve, Female Aerosol Valve, and High Delivery Valve

➤ Male Aerosol Valve: the stem sticks up, and the button slips over it.

➤ Female Aerosol Valve: the valve has a socket that receives a male stem on the actuator.

➤ High Delivery Valve: larger flow passages can increase delivery, but actual flow rate depends on the full valve, actuator, pressure, and formulation combination.

All three sit in a mounting cup, sealed with a gasket.

Trigger Spray Actuator to Standard Push Button Control

Trigger Spray Actuator
- Squeeze it to actuate a compatible aerosol valve; atomization depends on the complete spray system.
- Good ergonomics make long jobs easier on the hand.
Standard Push Button
- The required finger force depends on the valve and actuator design.
- Its simple control mechanism still needs application-specific durability checks.
Specialty caps change the spray pattern.
- Straw actuators hit tight spots.
- Foaming caps make foam.
- Powder actuators require a compatible powder-dispensing formulation and valve.

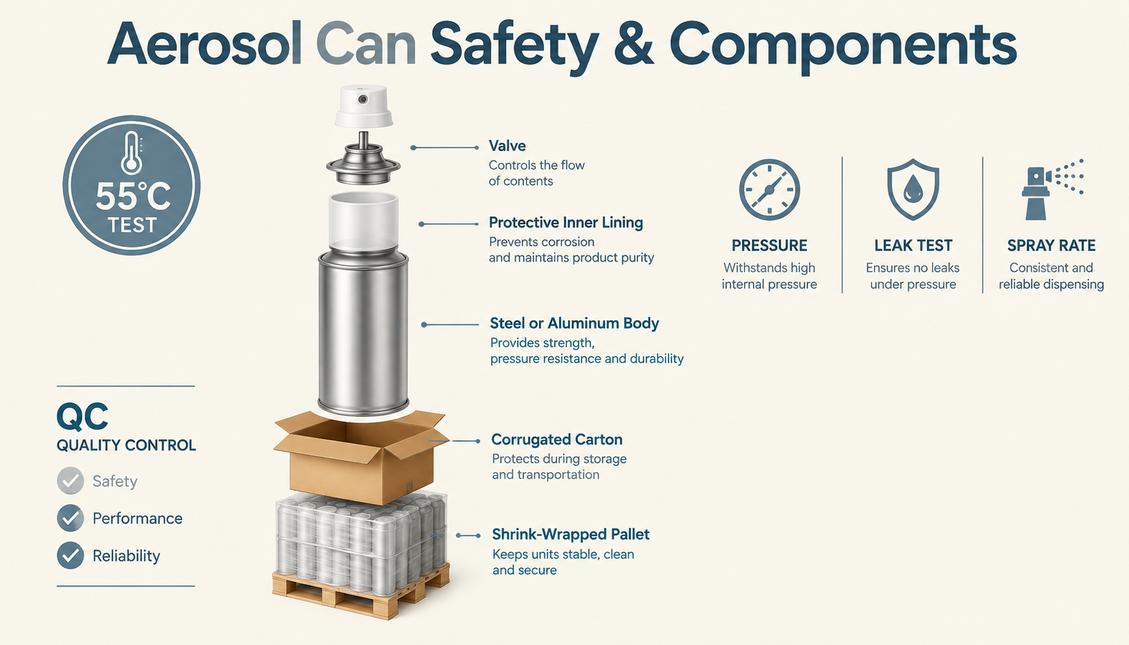

Aerosol Can Spray Components Explained

Ever wonder what keeps an aerosol can spray from bursting in your hand or leaking in a truck? It comes down to the metal, the coatings, the formula, the box, and the tests. Here’s a quick tour, no lab coat needed.

Tinplate Steel Sheet, Aluminum Extrusion Slug, and Can Strength

Steel route
- Tinplate steel is rolled thin, cut, and welded into a body.
- Cost and strength depend on the steel grade, thickness, and can design.
Aluminum route
- A small aluminum slug gets squeezed in an extruding press into one seamless tube.
- The body has no welded side seam; pressure performance still depends on the complete can design.

Compare FANXUN’s aluminum aerosol cans when selecting the body format. Its aerosol can manufacturing process overview also discusses coatings and inspection.

Either way, the wall has to fight internal pressure every day. Metal thickness, yield strength, geometry, seams, and manufacturing quality all affect pressure resistance. Good structural integrity must be supported by tests for the intended pressure and temperature.

Epoxyphenolic Lining and Polymeric Barrier Coating Protection

Some formulations require an internal lining to limit contact with the metal. Epoxyphenolic resin is one possible chemistry rather than a universal choice. The lining itself can form the barrier coating; its chemistry and cure must match the application.

A thin polymer film keeps product off the metal substrate.
Corrosion resistance can reduce the risk of rust spots and pinholes when the lining is suitable and intact.
Chemical compatibility must be evaluated with the actual formulation over its intended storage life; a lining does not guarantee unchanged color or spray.

Solvent Based Aerosol, Water Based Emulsion, and Silicone Lubricant Blend

Each formula acts differently once the propellant blend pushes it out. Composition and temperature affect viscosity and surface tension; a formula category alone does not establish numerical specifications:

Formula type	Viscosity specification	Surface tension specification
Solvent base	Measure actual formulation at stated temperature	Measure actual formulation under intended conditions
Water emulsion	Measure actual formulation at stated temperature	Measure actual formulation under intended conditions
Silicone lubricant	Measure actual formulation at stated temperature	Measure actual formulation under intended conditions

Water-based mixes may require surfactants and corrosion-control measures, depending on the formulation and package. Phase separation and corrosion are distinct issues. Thicker blends require validation of the complete flow path rather than simply a wider valve opening.

Corrugated Shipping Carton, Shrink Wrap Pallet, and Transport Requirements

Shipping is rough. Boxes get stacked, dropped, and shaken.

Read the safety information on the aerosol can before use and storage.

A corrugated carton with dividing pads keeps cans from clanking together. Shrink wrap holds the load tight, which helps pallet stability. Hazard classification determines applicable labels, marks, and transport conditions. For metal aerosols shipped under U.S. 49 CFR 173.306(a)(3), strong outer packagings are required; a universal UN-certification claim for every carton is inappropriate. Confirm requirements for the contents, destination, and transport mode.

Hot Water Bath Test, Leakage Detection Assay, and Spray Rate Measurement

The can supplier and filler have different responsibilities. Depending on the applicable specification and filling process, checks can include:

Where the standard U.S. metal-aerosol water-bath test applies, temperature and duration must bring internal pressure to that corresponding to 55 °C, or 50 °C when the liquid phase does not exceed 95% of capacity at 50 °C; leakage and permanent deformation are unacceptable, and regulatory alternatives have specific conditions.
Run leakage detection to catch tiny escapes at the valve.
Check the valve crimp size for seal integrity.
Perform specified pressure-resistance tests with suitable equipment and procedures; do not infer a pressure rating from appearance alone.
Weigh the discharge over time for spray rate and flow measurement.

PHMSA’s 1999 interpretation explains the 55 °C / conditional 50 °C water-bath reference temperatures; current requirements and permitted alternatives must be checked in the applicable regulation.

FANXUN reports sealing, dimensional, and pressure-related checks for its packaging. Filled-product testing and spray performance across the can life must be confirmed by the filler for the intended formulation and market.
