| Model No. | FD9206 |
| Material | 304 stainless steel main body / pneumatic components |
| MOQ | 1 Set |
| Sample | Machine video and technical drawing can be provided before order |
| Option | Custom can size, filling volume, valve type and line layout |
| Terms of Payment : | T/T (L/C, D/P, D/A, Paypal, Western Union, etc） |
| Suitable for | High pressure liquid filling for sealed one-component aerosol cans and BOV aerosol cans |
| Feature | Post-crimp liquid filling, high pressure filling structure, accurate dosing |
Share this product
| Filling Method | High-pressure liquid filling after gas charging and valve sealing |
| Filling Volume Range | 500-600cans/h |
| Filling Accuracy | Depends on filling medium |
| Applicable Package | Sealed one-component aerosol can or BOV aerosol can |
| Can Compatibility | 35-65mm diameter / 70-330mm height |
| Process Position | Post-crimp product filling |

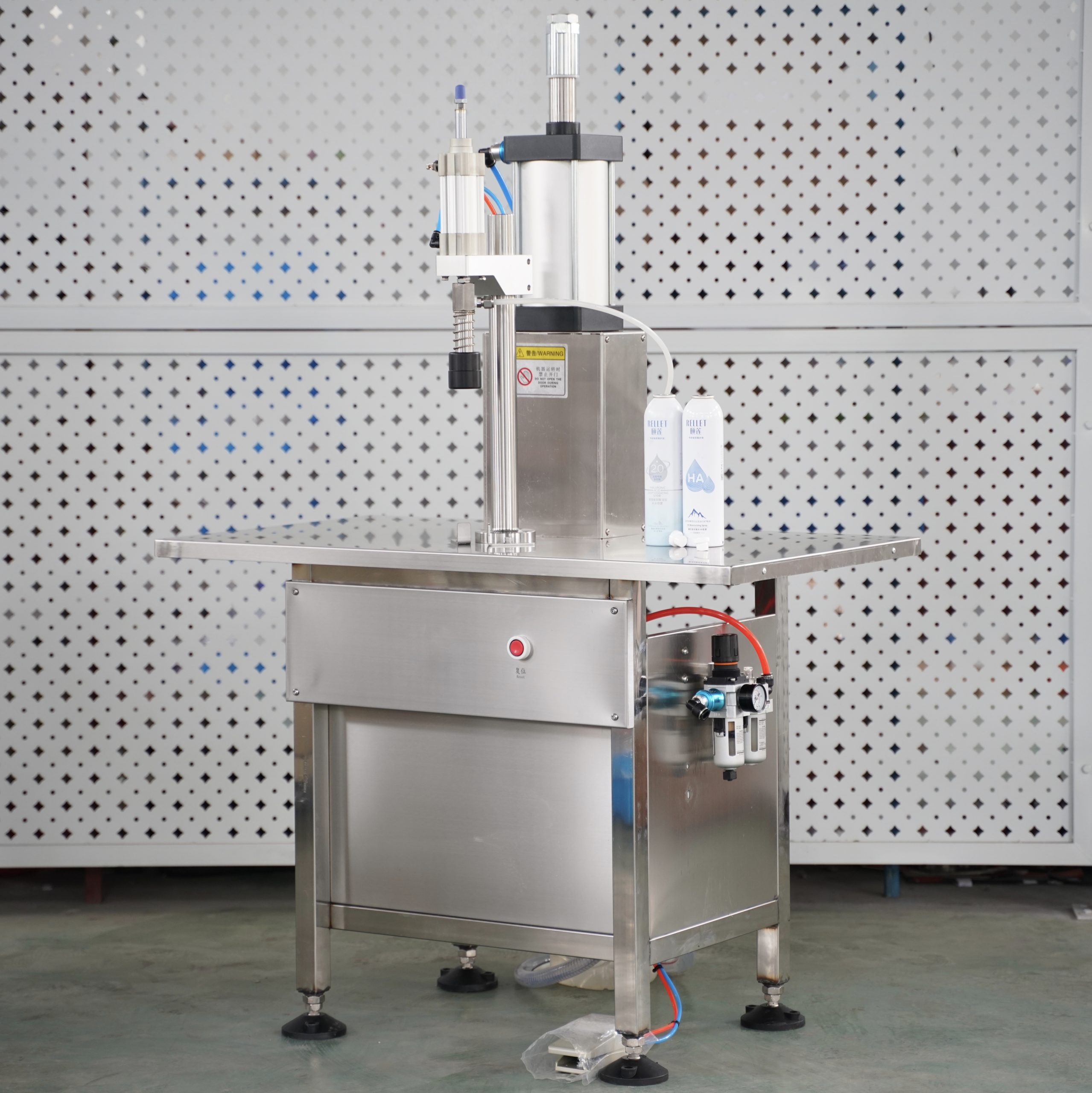

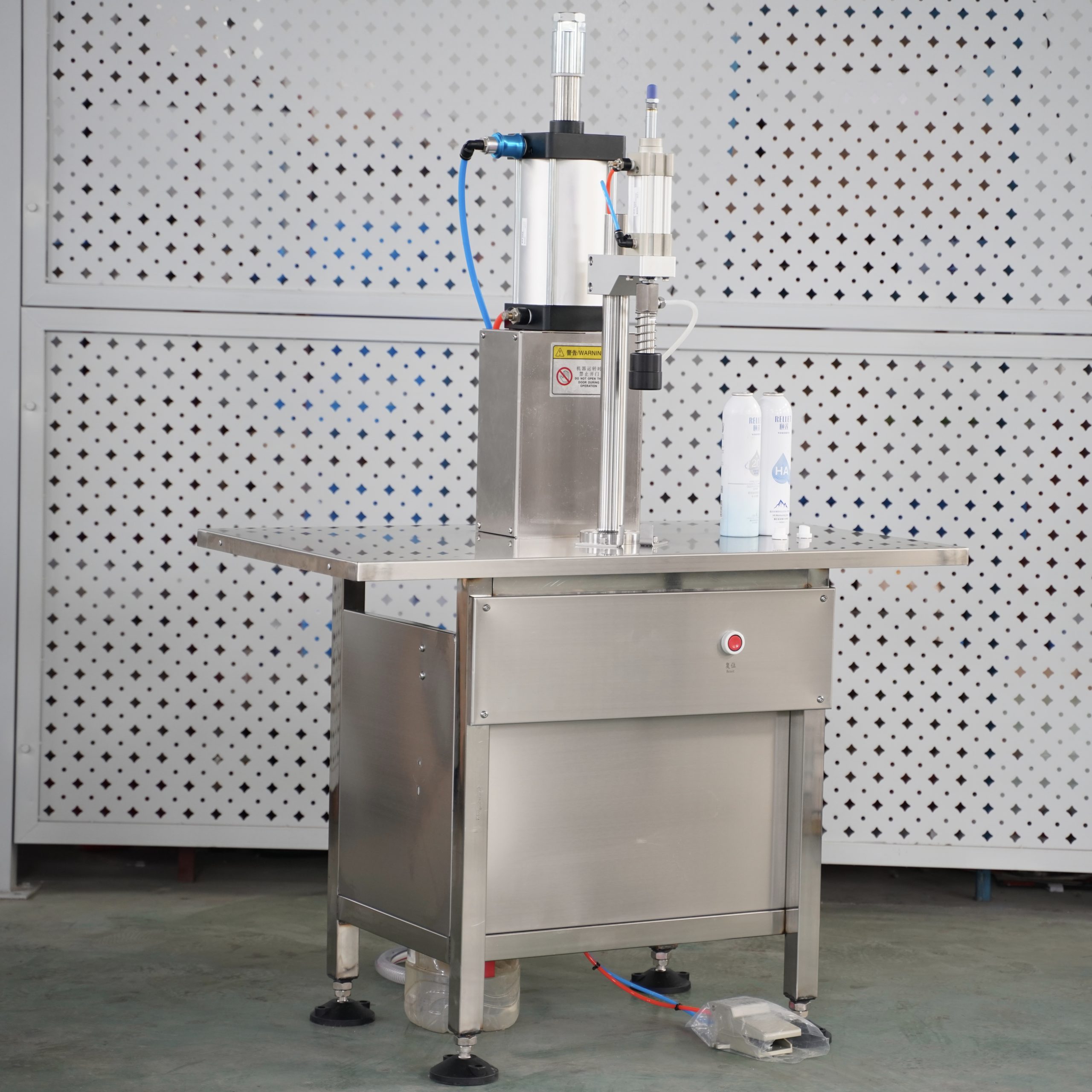

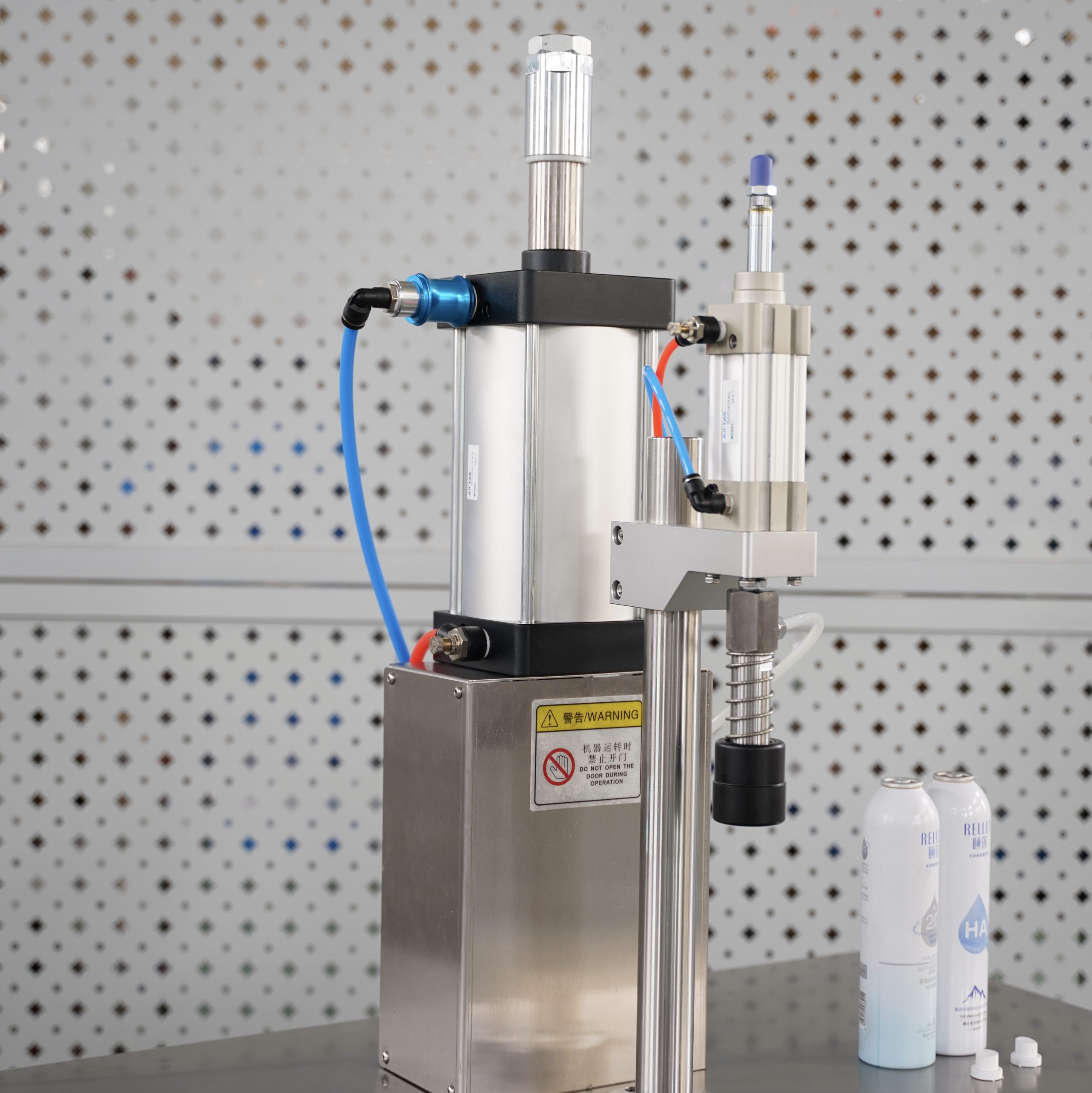

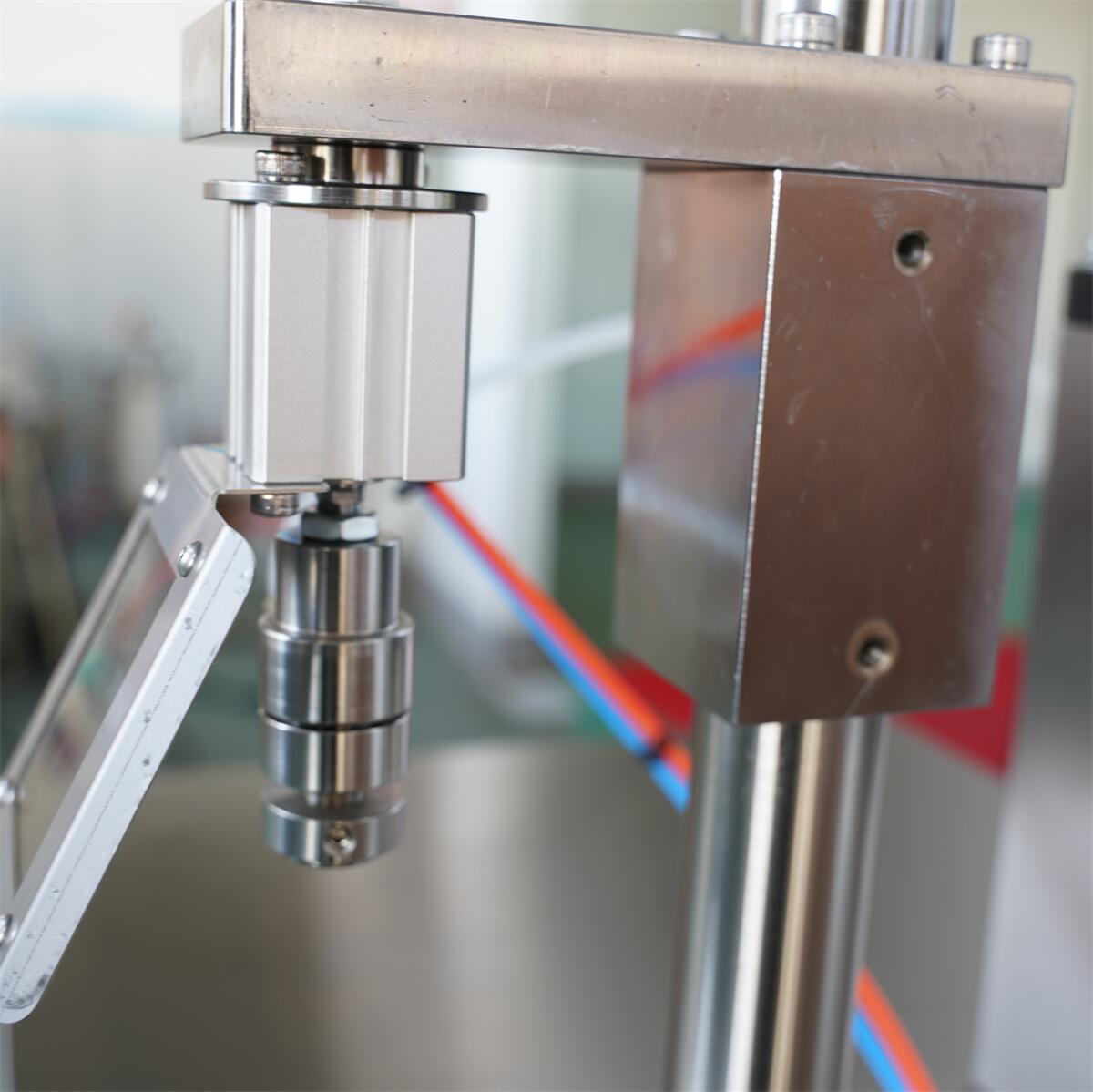

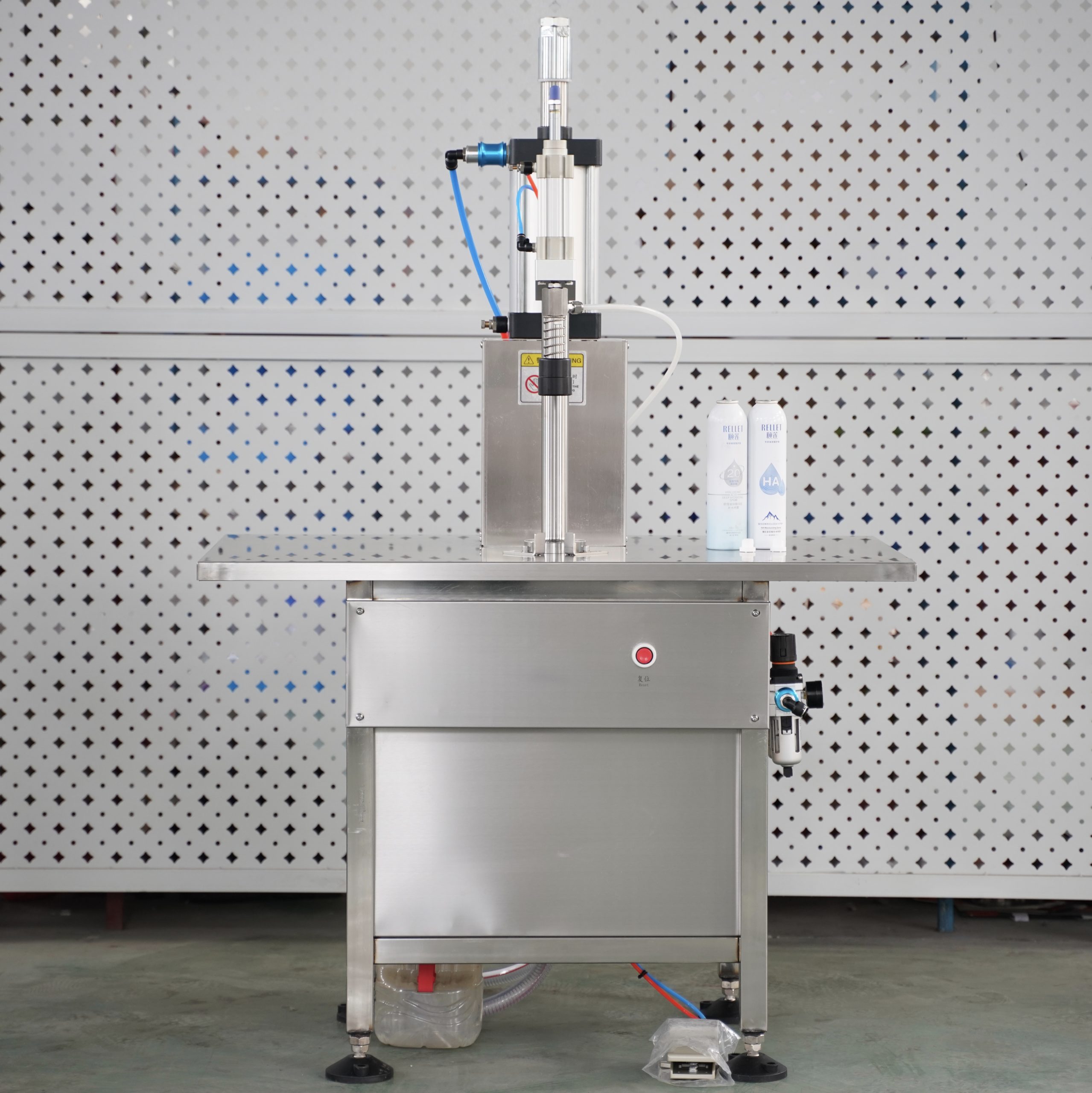

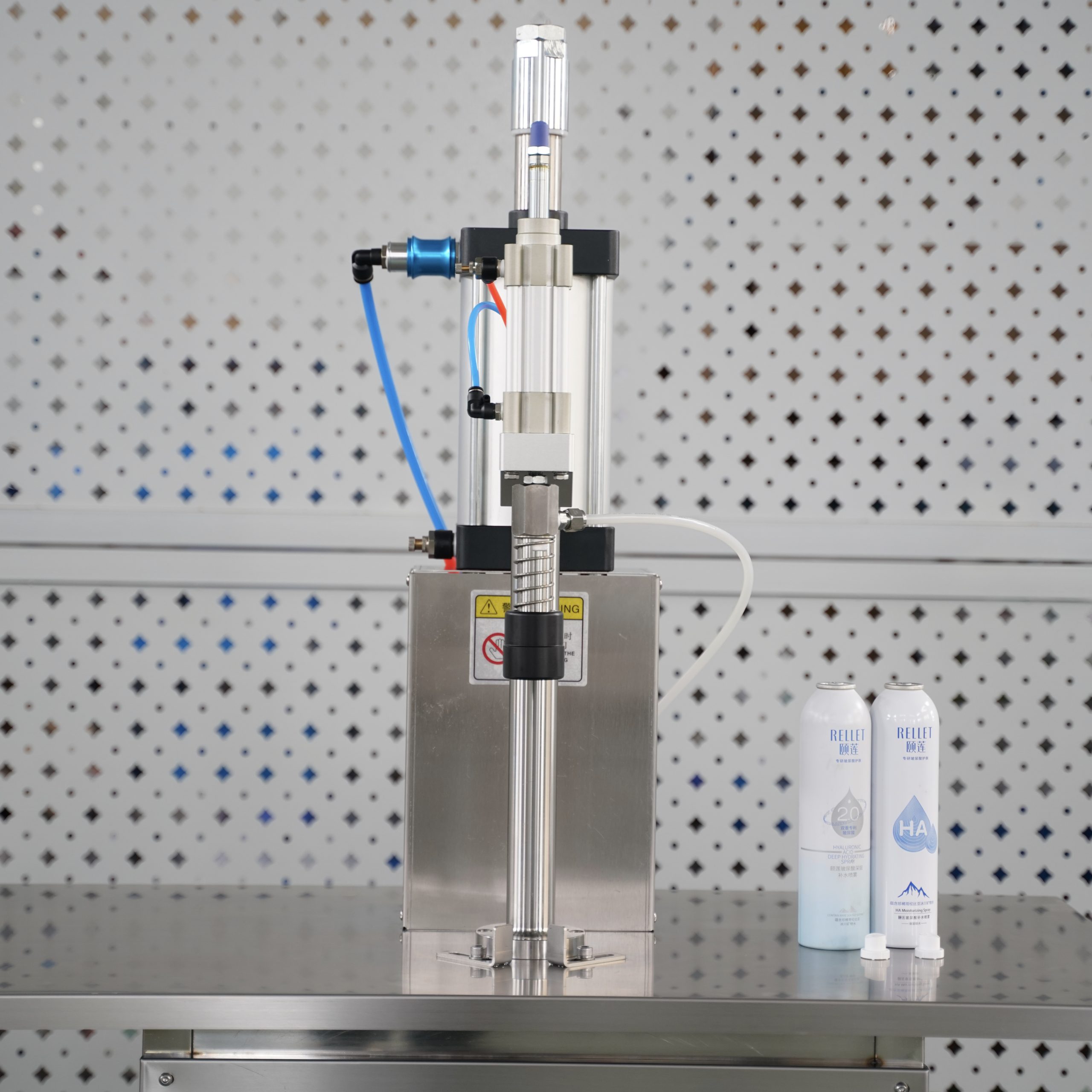

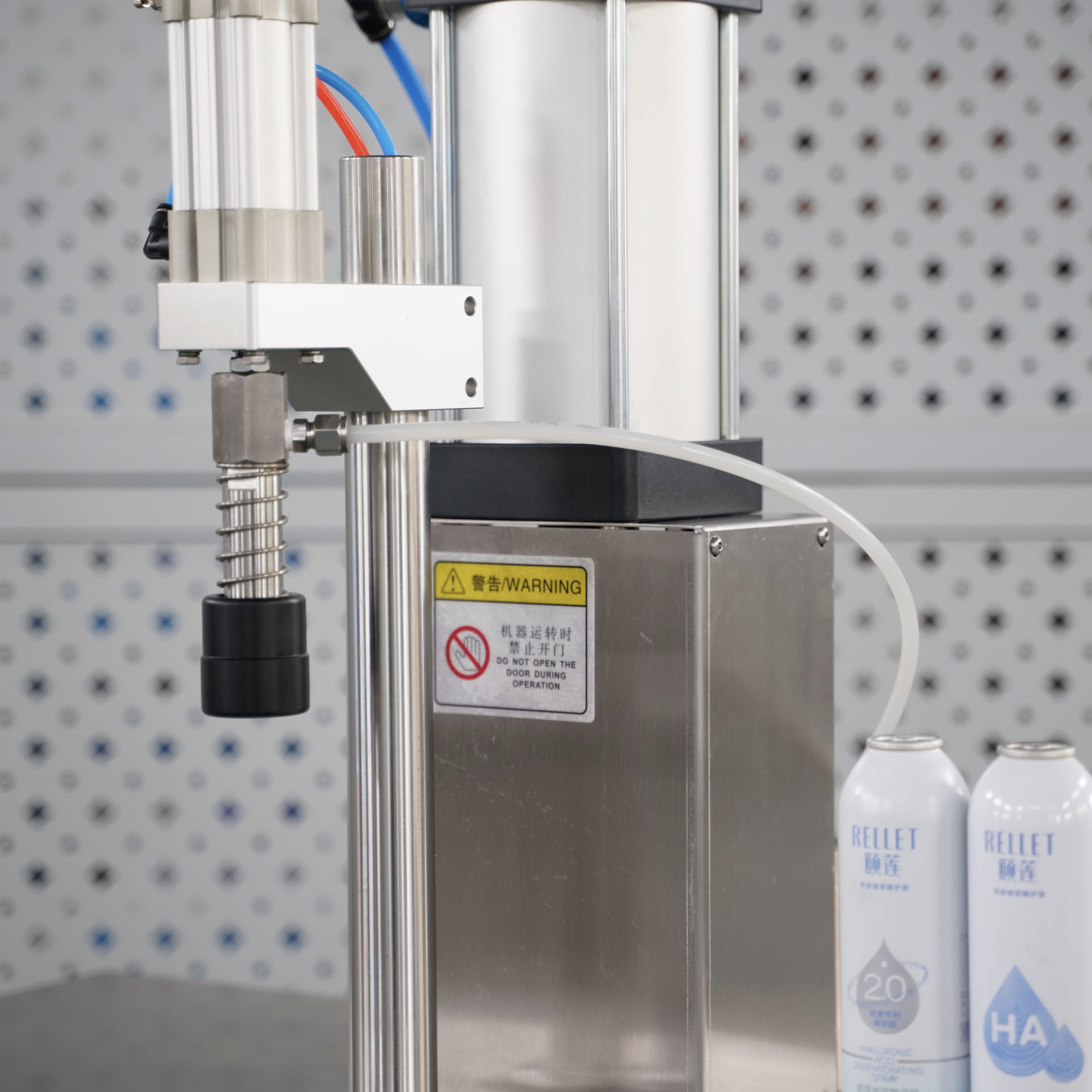

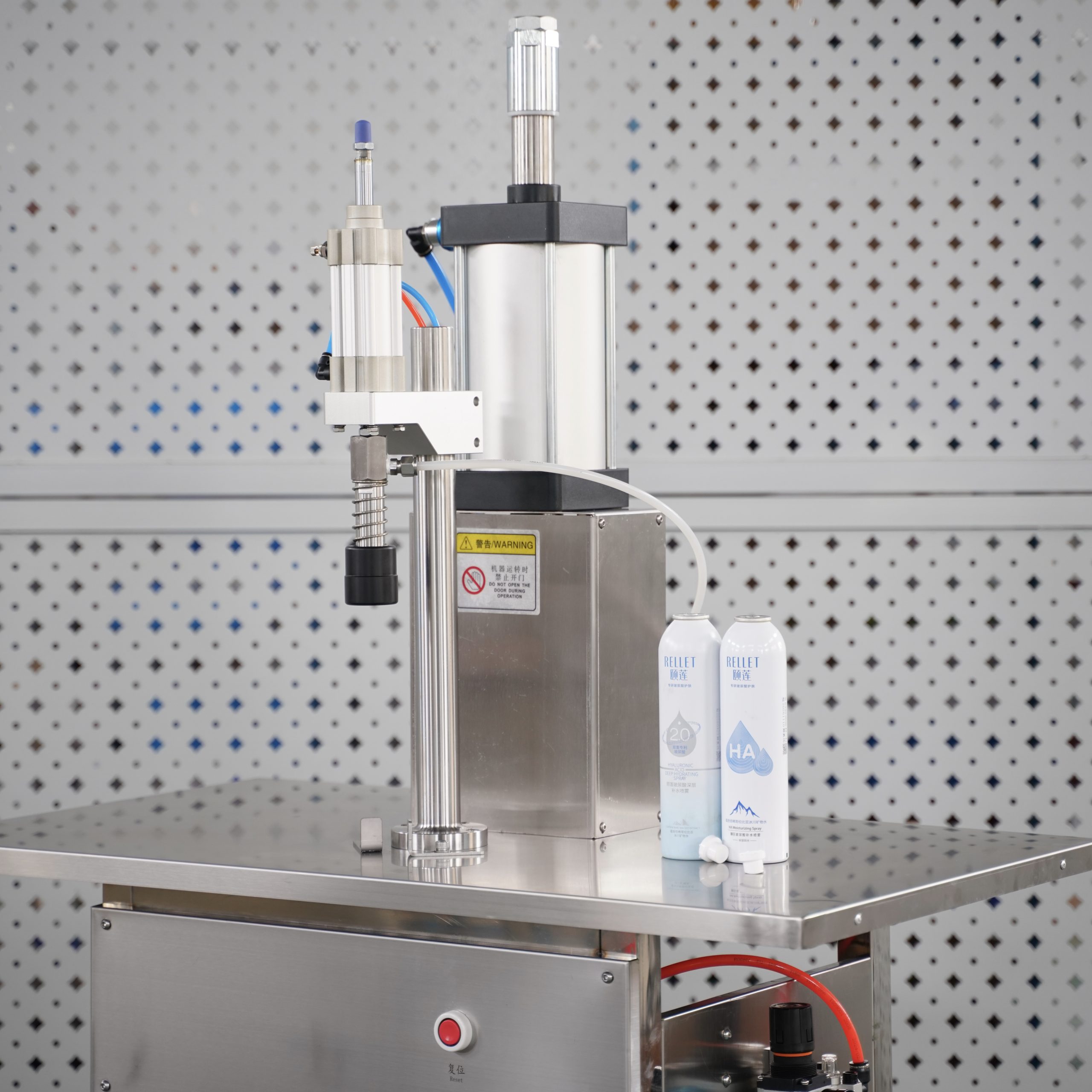

This machine fills liquid into aerosol cans after gas charging and sealing, which is required for certain one-component and BOV aerosol processes.
High-pressure liquid filling is used when product must be filled after the can has already been sealed and pressurized. This is common in some BOV and special aerosol processes.
The machine is designed for liquid filling under pressure, helping product enter the sealed can or bag system correctly.
The machine pushes liquid through the valve or filling path under pressure, so sealing condition and pressure setting must be confirmed before operation.
Adjustable filling volume and stable pneumatic operation support consistent product quantity across batches.
Filling volume and accuracy are affected by product viscosity, pressure stability and valve structure. Trial filling is recommended before mass production.
It can be used as part of a BOV production line or for other aerosol products requiring high-pressure product filling.
It is an important support machine for customers producing BOV aerosols or special one-component products that cannot be filled before crimping.
FANXUN Machinery focuses on aerosol filling machinery and supporting production solutions. We help customers choose suitable equipment according to can size, valve type, filling medium, safety requirement and target output. From single semi-automatic machines to combined filling systems, our team can provide technical communication, export packing, installation guidance and after-sales support. For this semi-automatic high pressure liquid filling machine, configuration can be adjusted before production so the machine better matches the customer’s real workshop process.
