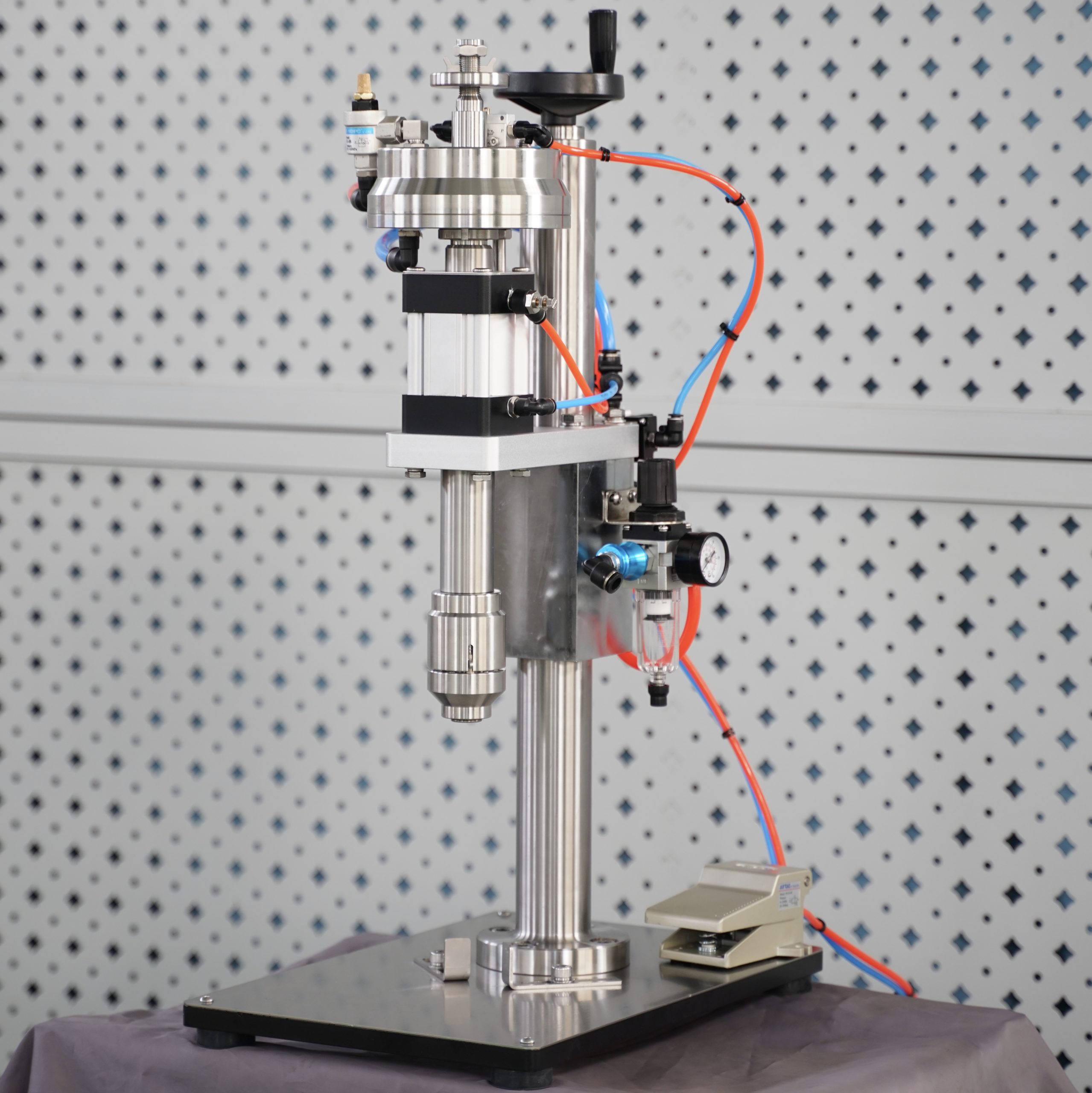

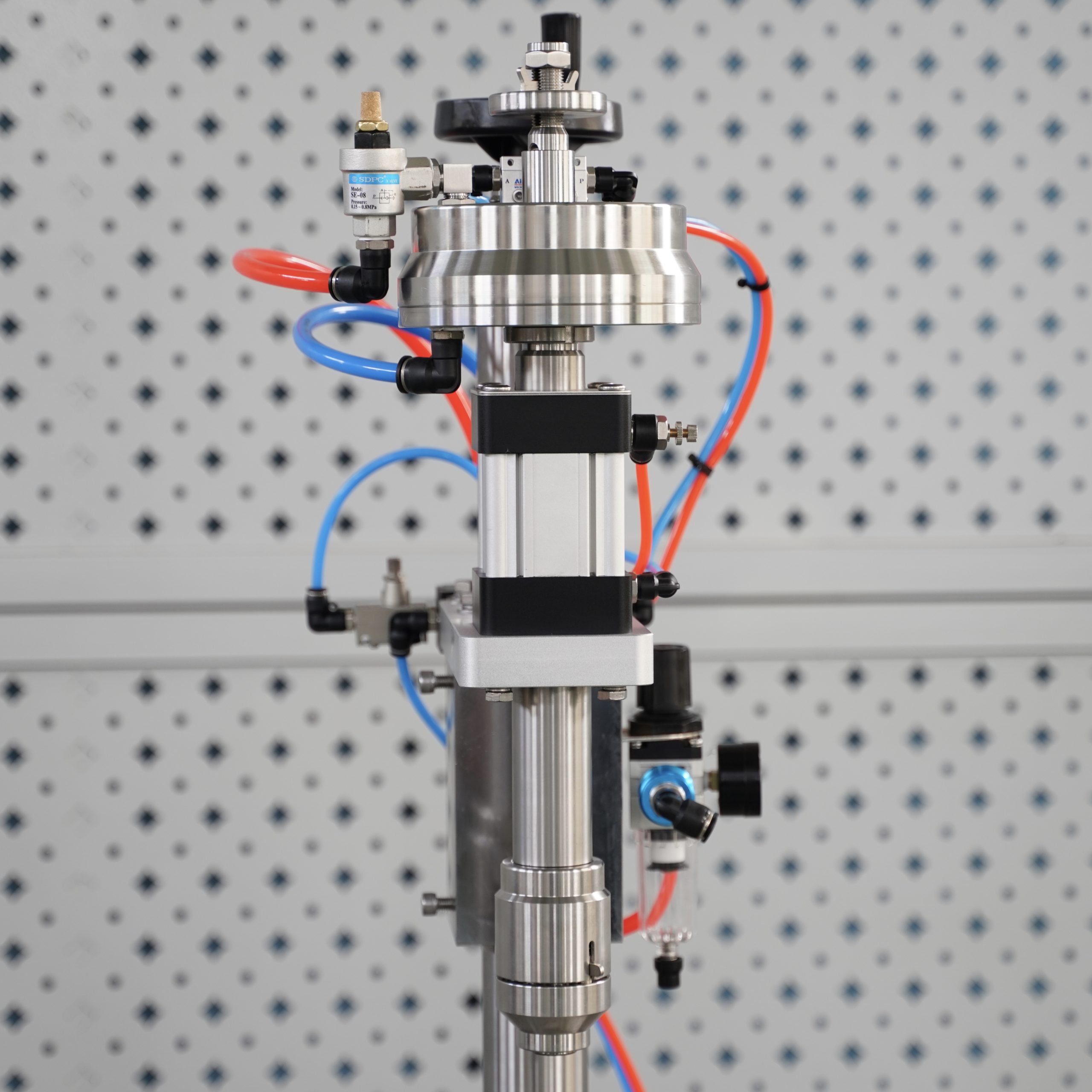

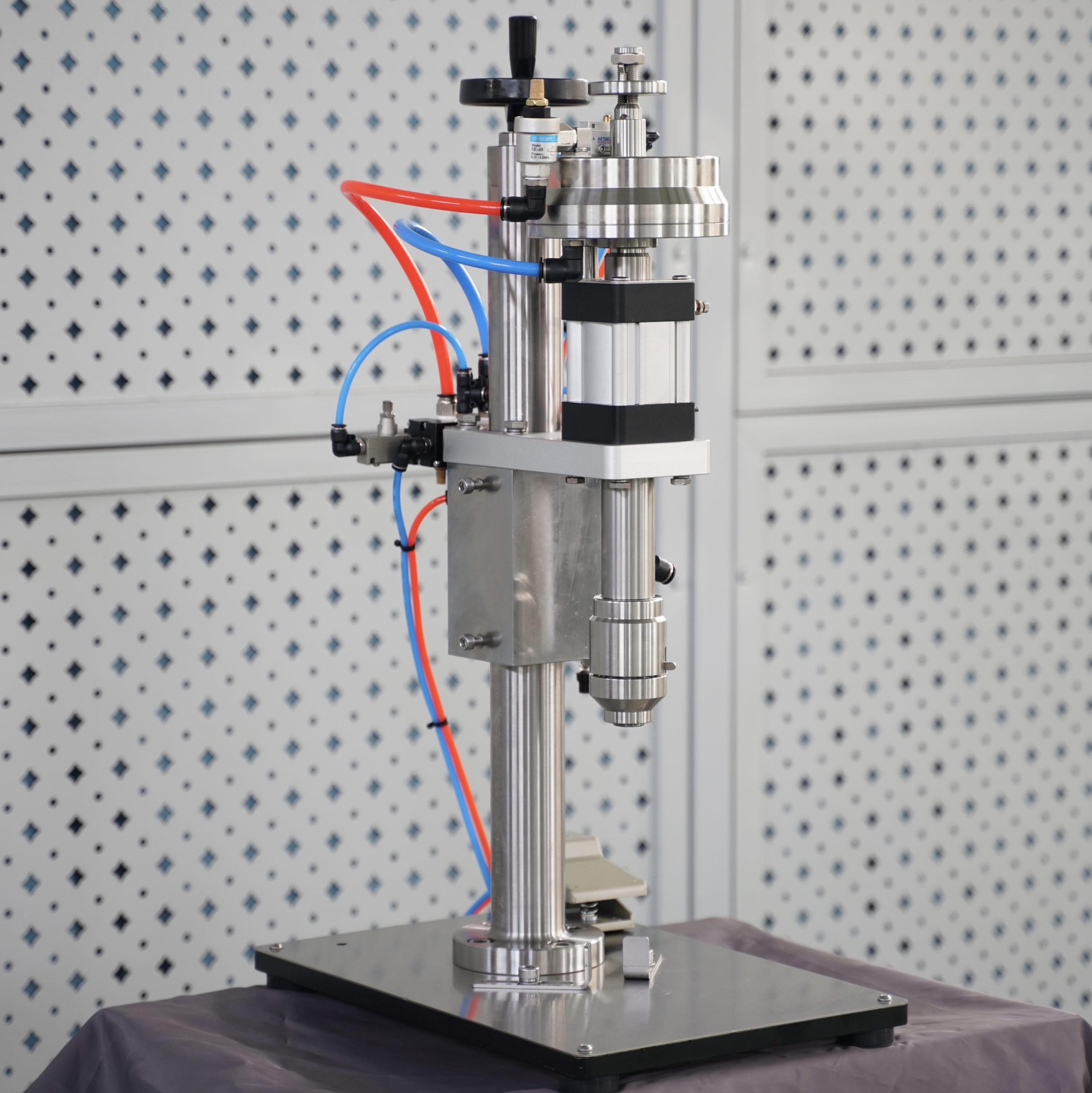

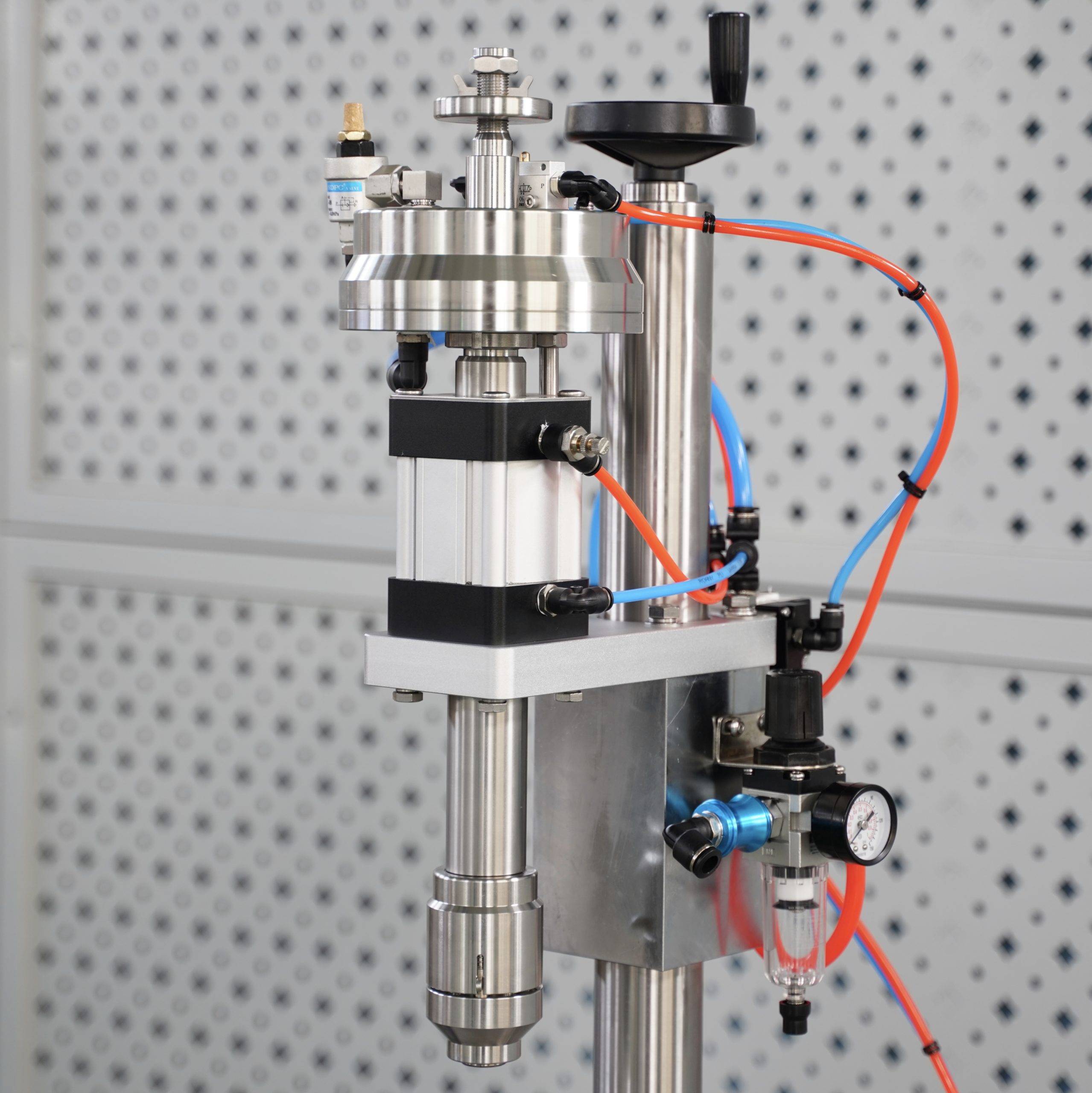

Mesin pengedap meja

A tabletop aerosol gas filling and sealing machine for 1-inch aerosol valve crimping and propellant charging.It is designed with a hardened Cr12 claw (≥48 HRC) to maintain high airtightness under harsh conditions, delivering easy, tepat, and fast production for cosmetics, Farmaseutikal, and automotive care.

Model No.	FD9301 / FD9302
Bahan	304 badan utama keluli tahan karat / komponen pneumatik
Moq	1 Tetapkan
Sampel	Video mesin dan lukisan teknikal boleh disediakan sebelum pesanan
Pilihan	Saiz tin tersuai, isipadu pengisian, jenis injap dan susun atur talian
Syarat Pembayaran :	T/t (L/C, D/P, D/A, Paypal, Western Union, dll）
Sesuai untuk	Kosmetik, Farmaseutikal, furniture and building materials, penjagaan kereta, daily chemical and industrial products, dll.
Ciri	Hardened Cr12 sealing claw (≥48 HRC) for long-term precision and durability.

Kongsi produk ini

Applicable valves	1 inci (25.4 mm)
Tank diameter	35-65mm
Tank height	70-330mm
Gas source connector	10mm
Sealing height (adjustment range)	0-0.7mm±0.15
Kapasiti pengeluaran	1000-1200tin/j

Core configuration of Tabletop Aerosol Gas Filling Machine: Gas Dosing Range: Disesuaikan / Sealing Mechanism: Hardened Cr12 claw (hardness of ≥48 HRC) for standard 1-inch valves / Equipment Structure: Tabletop frame / Ketepatan: Depends on propellant. Final settings adjusted according to client’s can size, jenis injap, and process.

—01

Hardened Sealing Claw

The machine is equipped with a hardened Cr12 steel sealing claw with a hardness of ≥48 HRC, giving operators a more durable crimping tool for repeated sealing jobs. The high-hardness claw provides the sealing station with a more stable base for daily factory use. It maintains its precise sealing dimensions longer than standard steel components, even when sealing under challenging environments.

—02

For Daily Production

Compared with compact tabletop models lacking hardened components, this format is better suited for regular workshop use and longer production runs. This machine suits customers who need regular aerosol sealing and gas filling but still want semi-automatic flexibility. It can handle different can heights and standard 1-inch valves after adjustment.

—03

Flexible Propellant Handling

It can handle a wide range of propellant and compressed gas types, from standard LPG to DME or nitrogen, depending on the selected filling configuration. For varied gases, accurate dosing and stable pressure control should be considered to reduce gas loss, kebocoran, or unstable filling volume.

—04

Semi-Automatic Line Ready

It can be arranged with a product liquid filler, weight checker, and water bath to create a practical semi-automatic aerosol production line. It can be arranged with other workbench aerosol machines to build a clean semi-automatic line with a clear operating sequence.

Mengapa Memilih Pembungkusan Fanxun?

Pengeluar Mesin Pengisian

Jentera FANXUN memberi tumpuan kepada jentera pengisian aerosol dan penyelesaian pengeluaran sokongan. Kami membantu pelanggan memilih peralatan yang sesuai mengikut saiz tin, jenis injap, medium pengisian, keperluan keselamatan dan output sasaran. Daripada mesin separa automatik tunggal kepada sistem pengisian gabungan, pasukan kami boleh menyediakan komunikasi teknikal, pembungkusan eksport, panduan pemasangan dan sokongan selepas jualan. For this tabletop aerosol gas filling machine, konfigurasi boleh dilaraskan sebelum pengeluaran supaya mesin lebih sepadan dengan proses bengkel sebenar pelanggan.

Soalan?

Soalan yang sering ditanya

What aerosol valve and can sizes is this tabletop machine compatible with?

The machine is specifically designed for standard 1-inch (25.4mm) injap aerosol. The workbench setup allows operators to easily adjust the working height to accommodate various standard aerosol can dimensions.

What material is used for the core sealing claw, and what is its durability?

The core sealing claw is manufactured from high-quality Cr12 alloy steel and undergoes a vacuum hardening process to achieve a hardness of ≥48 HRC. This high hardness minimizes wear during repetitive metal-on-metal crimping, providing a longer service life than standard steel components.

How does the equipment ensure high airtightness under harsh environmental conditions?

The high-hardness Cr12 claw ensures uniform and precise crimping forces on the 1-inch valve. This precise deformation forms a robust seal between the valve gasket and the can rim, preventing propellant leakage even when the finished cans are exposed to challenging temperatures or shipping vibrations.

Which types of propellants or compressed gases are compatible with this filling machine?

It is compatible with commonly used liquefied propellants like LPG and DME, as well as compressed gases such as Nitrogen (N2) and Carbon Dioxide (CO2), depending on the specific gas dosing cylinders and nozzle configurations selected for your process.

Can this tabletop model be integrated into an existing semi-automatic production line?

Ya, its compact benchtop structure allows it to be placed side-by-side with other modular workbench units, such as a liquid filling station, a weight checker, or a water bath, easily forming a clean, sequential semi-automatic production line.

How is the gas dosing accuracy and pressure stability managed?

The machine utilizes a dedicated pneumatic dosing cylinder for accurate gas volume control, paired with a stable pressure regulator. This configuration maintains consistent filling volumes and stable internal can pressure throughout daily production runs.
