가압된 캔 내부에서는 무슨 일이 일어나는가?? 과학 설명

[email protected]
10/08/2026

Inside a pressurized can, pressure waits; 추진제, 판막, 코팅, and metal must cooperate, or performance goes sideways.

그랜드뷰리서치 identifies personal care as a major 에어로졸 포장 애플리케이션, reinforcing compatibility’s commercial importance worldwide.

OEM 구매자의 경우, the science gets practical fast: match materials, 밸브, 물개, and filling for reliable dispensing. Looking for reliable OEM packaging? FANXUN 살펴보기 에어로졸 캔 with quick 10-day sample turnarounds.

독서 노트: Pressurized Can Essentials

➔ 재료 & 내벽: Choose tinplate or aluminum slug with appropriate wall thickness and interior surfactant film to resist corrosion and maintain spray stability.

➔ 판막 & 액추에이터: Ensure dip-tube alignment, valve orifice geometry, and actuator design deliver consistent atomization and spray pattern.

➔ 추진제 선택: Balance pressure and safety—hydrocarbon gases for performance, dimethyl ether for solvent action, or inert nitrogen/CO₂ for non-flammability.

➔ Factory Controls: Rely on precise crimping, inline leak detection, burst-pressure testing, and protective packaging (corrugated cartons, 수축 필름) for reliable, compliant dispensing.

Guided Tour: Pressurized Can Internal Layers

A pressurized can may look simple, but several hidden parts keep contents protected and spray controlled. From metal walls to valves, FANXUN designs each pressurized can layer around safe containment, product contact, and practical aerosol-can performance during everyday use.

양철 대. Aluminum Slug: Wall Thickness Insights

A pressurized can starts with its shell.

양철
- Formed from corrosion-resistant 금속 시트.
- 벽 두께 and neck shape support 구조적 완전성 압력을 받고 있는.
aluminum slug
- 압출 creates the body.
- Diameter and wall profile influence 압력 저항, helping the can handle deformation without adding needless weight. Whether your formulation requires 100% 재활용 가능 페인트 깡통 or premium 알루미늄 에어로졸 캔, FANXUN provides customizable OEM solutions starting at a flexible 3,000 pcs MOQ.

Surfactant Film Lining on Can Interior

Inside a pressurized can, 그만큼 내부 안감 works as a chemical barrier between the 기판 그리고 에어로졸 제제. 적당한 보호 코팅 제공할 수 있다 부식 억제, 동안 surfactant film helps limit unwanted metal-product interaction. That’s a small detail with a pretty big job.

Dip Tube and Actuator Alignment Explained

Liquid still needs a clean route out.

딥 튜브
- 지원합니다 suction mechanism as product travels upward.
- 적절한 internal clearance helps maintain flow.
밸브 어셈블리
- Connects flow to the 액추에이터.
- Orifice design applies 유체 역학 to shape discharge.
  - Good alignment supports a consistent 스프레이 패턴 and spray rate.

마운팅 컵 & Dust Cap Assembly

FANXUN supplies precisely matched 장착 컵 그리고 container necks, ensuring your filling equipment can form a secure 폐쇄 메커니즘 사용하여 압착 씰 그리고 틈 메우는 물건. The brand also provides aerosol can top and bottom components to spec.

그만큼 dust cap serves as a protective cover, keeping the actuator cleaner and reducing accidental discharge. 함께, these parts finish the pressurized can package and keep day-to-day handling straightforward.

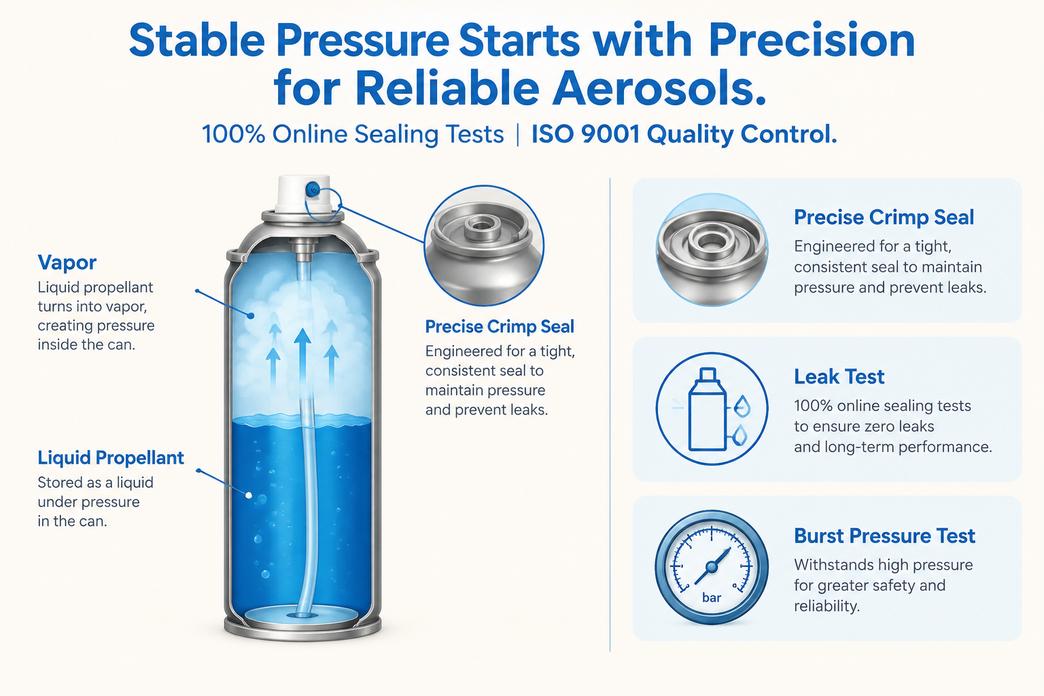

How Does Pressure Build Up Inside?

에이 pressurized can gains pressure through a mix of propellant behavior, 온도, and sealing quality. 간단하게 들리는데, but small production changes can shift performance quite a bit. FANXUN focuses on precision can manufacturing, dependable closures, 그리고 100% online sealing tests so each empty aerosol can is ready for your controlled filling process to achieve stable, predictable pressure.

From Propellant Loading to Vapor Equilibrium

캔 내부:
- 추진제 enters mainly as a liquid phase.
  - Part evaporates into the gas phase, raising 증기압.
  - Evaporation continues toward 포화 그리고 equilibrium.
- 온도 changes that balance.
  - More heat generally means higher internal pressure.
  - Cooling usually lowers pressure.

이것 liquid-vapor equilibrium lets a pressurized can maintain useful spray pressure as product is discharged. Pretty neat physics in a small package.

Crimping and Seal Integrity for High Pressure

At the closure:
- 압착 secures the 밸브 컵 주위에 컨테이너 넥.
  - 통제됨 틈 메우는 물건 compression creates the 밀폐형 씰.
  - Accurate dimensions support consistent 압력 저항.
- Poor adjustment can concentrate 기계적 응력.
  - Too loose risks leakage.
  - Too tight may damage sealing parts.

FANXUN engineers cans and valves to strict specifications, allowing your 충전물 기계 to achieve optimal crimp settings rather than treating one setting as a catch-all.

Leak Detection and Burst Pressure Test

During verification:
- 누출 감지 checks the sealed aerosol can for escaping propellant.
  - Failed seals are flagged before release.
- 에이 hydrostatic test can assess 구조적 완전성 under controlled pressure.
  - 그만큼 스트레스 테스트 monitors 흉한 모습.
  - 정확히 잰 파열 압력 helps confirm an adequate 안전마진 above normal service pressure.

For a pressurized can, these checks help catch weak closures or containers before routine handling puts them under greater strain. FANXUN에서, quality is non-negotiable. We implement 100% online sealing tests and strict ISO 9001 quality controls to ensure every container meets peak safety standards. Discover our full 조작 능력.

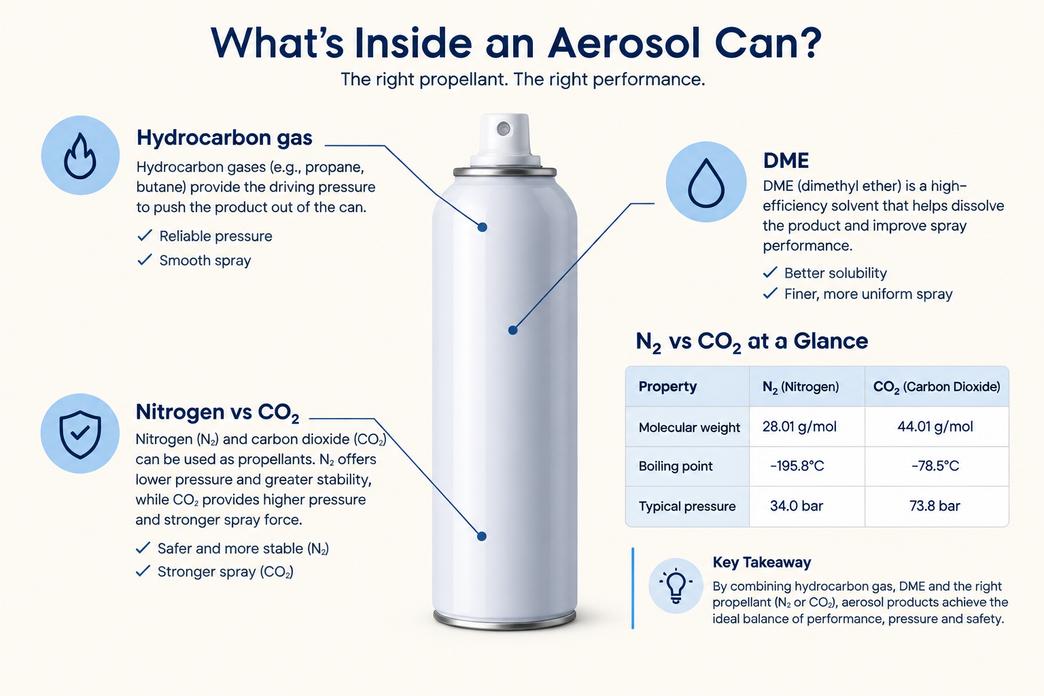

Types of Propellants in Aerosol Cans

Propellant choice shapes spray quality, storage pressure, and product compatibility inside every pressurized can. FANXUN considers these traits when matching can design with practical filling and safety needs.

Hydrocarbon Gas: Common Propellant Choice

프로판, 부탄, 그리고 Liquefied petroleum gas are widely used as an 에어로졸 추진제.
- 그들의 Vapor pressure maintains useful spray force as liquid evaporates.
- Phase equilibrium helps pressure remain fairly steady during use.
Combustibility is the catch: each pressurized can needs suitable filling, 저장, 라벨링, and ignition controls. That matters, big time.

Dimethyl Ether’s Solvent and Pressure Role

디메틸에테르 supplies pressure while its Solvent properties can help dissolve formulation ingredients.
- 좋은 Miscibility may simplify a water-containing 공식화.
- 내에서 Liquid phase, DME maintains useful Vapor pressure as product leaves the pressurized can.
Material compatibility still matters. Chemical stability and seal performance should be checked before production, keeping the pressurized package reliable throughout its intended shelf life.

Compressed Nitrogen vs. 이산화탄소

질소 acts much like an Inert gas, ~하는 동안 Carbon dioxide has greater 용해도 in many liquids. 그래서, yeah, their discharge behavior can differ noticeably.

을 위한 압축가스 선택:
- Higher dissolved CO2 may influence Pressure drop 사용 중.
- Nitrogen often gives cleaner Gas discharge where low gas dissolution is preferred.

재산	질소	Carbon dioxide	단위
Molar mass	28.01	44.01	g/mol
Critical temperature	-147.0	31.0	° C
Critical pressure	34.0	73.8	술집
Normal boiling/sublimation point	-195.8	-78.5	° C
Gas density, ~1 atm, 20° C	1.17	1.84	kg/m³

These rounded physical-property values align with NIST Chemistry WebBook reference data. FANXUN can designs must still match actual filling pressure and product chemistry.

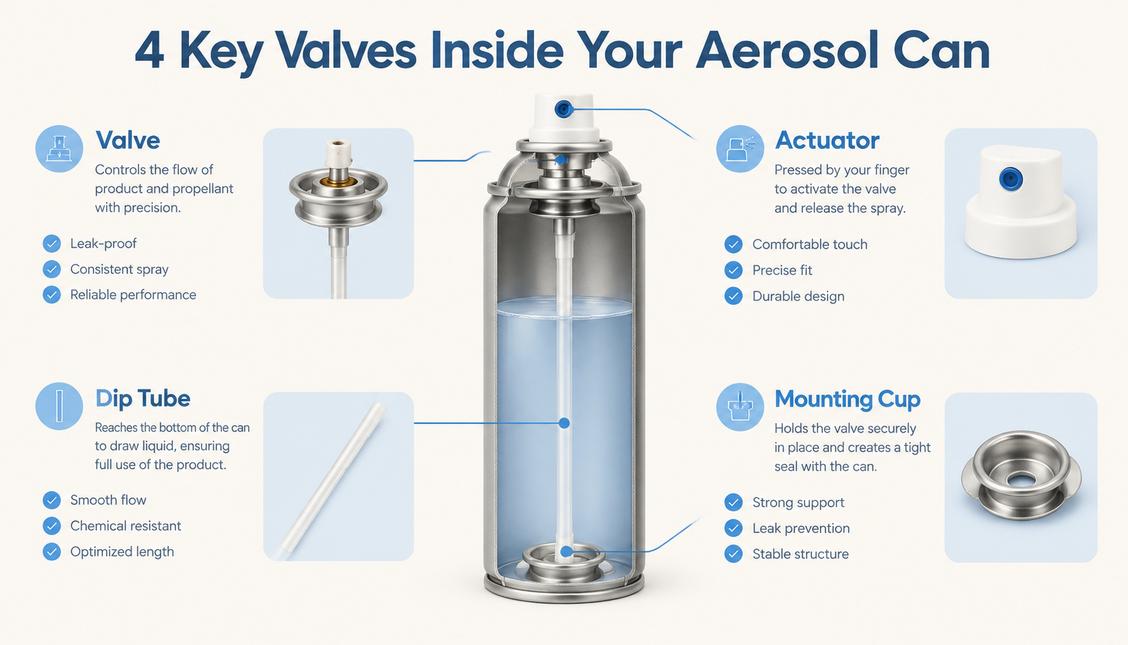

4 Key Valves Inside Your Aerosol Can

에이 pressurized can looks simple from the outside, but four connected parts do the real work inside. From holding pressure to guiding each spray, these components keep the can sealed, usable, 그리고, 잘, pretty straightforward to operate.

에어로졸 밸브

The aerosol valve acts as the main gate for product release 에 pressurized can.

Inside the valve:
- 그만큼 줄기 carries product toward the outlet.
  - 에이 봄 returns it after dispensing.
  - 에이 틈 메우는 물건 forms a tight 밀봉하다 around moving parts.
- 그만큼 주택 supports flow paths.
  - Its opening helps with 압력 제어 and spray rate. Exploring options? Check out FANXUN’s specialized 에어로졸 밸브 부속품.

액추에이터

다음을 누르세요. 단추, and the valve opens. Product then passes through the actuator’s 구멍 그리고 대통 주둥이, turning internal flow into controlled 분배.

그만큼 손가락 패드 provides the everyday 사용자 인터페이스.
Outlet shape controls the 스프레이 패턴, from a focused stream to fine droplets.

딥 튜브

The dip tube is the fluid pathway reaching down through the pressurized product.

Product pickup
- The flexible straw provides enough reach ~을 위한 bottom extraction.
  - Pressure pushes the 액체 추진제 mixture upward.
  - This flow, sometimes loosely called inner suction, feeds the valve during normal use.

마운팅 컵

에이 pressurized can also needs a secure top connection. The mounting cup serves as its metal closure.

그만큼 ferrule fits around the can opening.
Accurate crimping creates dependable container attachment 그리고 압력 억제.
Compatible sealing materials maintain a 밀폐형 씰 보관 중, 해운, and repeated dispensing.

Industrial Filling: Pressurized Cans in Factories

Industrial filling turns an empty can into a controlled pressure package ready for handling and shipment. Each pressurized can moves through liquid dosing, 추진제 충전, 밀봉, 점검, 그리고 포장. Sounds straightforward, but small fill or crimp changes matter. Connected controls keep can pressure, product quantity, and package condition within production specifications. We also manufacture standard containers like 엔진 오일 캔 그리고 금속 양동이 pails for unpressurized industrial needs.

용제 & Surfactant Fill Station Setup

Liquid preparation
- 에이 mixing tank feeds the storage reservoir.
- 에이 metering pump 그리고 flow meter 각 복용량을 조절.
캔 충전
- 그만큼 liquid injector 그리고 dispensing nozzle fill cans moving on the conveyor belt, keeping concentrate below overflow capacity.

Automated Propellant Gas Gassing Process

Propellant supply
- 액화 가스 passes from the gas cylinder through a pressure regulator.
Controlled charging
- 그만큼 gassing head introduces the measured charge through the pressure valve.
- 에이 safety shutoff stops abnormal flow, helping maintain pressurized can performance.

Precision Crimping for Seal Integrity

에이 locking head 그리고 crimp collet secure the 밸브 onto each 알루미늄 캔. 적절한 씰링 개스킷 compression is the key bit: 에이 diameter gauge checks the formed crimp before cans move ahead.

Inline Leak Detection and Deformation Test

에이 pressure sensor, bubble detector, 또는 integrity tester can flag leaks. Typical control values depend on the product and validated specification.

확인하다	예시값	단위	목적
Fill mass	400	g	수량
시험압력	12	술집	힘
살포율	2.0	g/초	디스펜싱

An automated reject mechanism removes failed cans from the conveyor line.

Corrugated Carton & Shrink Film Packaging

에이 packing machine loads cans into a cardboard box with suitable dividers.
에이 heat sealer closes shrink film before the shrink tunnel.
그만큼 palletizer builds loads for secure storage and transport, with hazardous-material packaging and marking applied when legally required.

Ready to launch your next pressurized product, or exploring custom car care cans other 옵션? FANXUN과 파트너십을 맺다, an industry expert with over 30 수년간의 경험. We offer a rapid 1-day solution proposal covering design, 재료, and quoting. 오늘 저희에게 연락하세요 시작하다!
